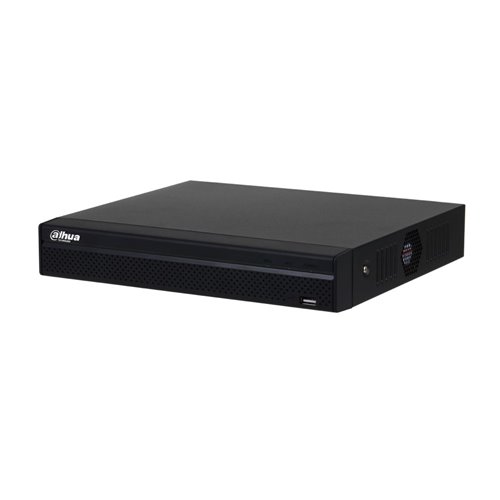

NVR4116HS-8P-4KS2/L - Dahua 16 channel 4K / 8MP IP NVR. S…

Specifications

    16 IP channels up to 4K / 8MP
    Video compression: Smart H.265 +, H.265, Smart H.264 +, H.264
    Simultaneous HDMI (4K) and VGA (1080P) video outputs
    Output division: 1, 4, 8, 9, 16
    1 RCA input / 1 RCA audio output
    Two-way audio via RCA input / output
    Audio compression: G.711a, G.711u, PCM, G726
    Recording resolution: 4K / 8MP, 5MP, 4MP, 3MP, 1080P, 720P, D1, CIF
    Bandwidth: 80 Mbps for access, 80 Mbps for storage and 60 Mbps for forwarding
    Decoding capacity: 2 channels at 8MP (25 ips), 4 channels at 4MP (25 ips), 8 channels at 1080P (25 ips)
    Manual, alarm, motion detection and timed recording modes
    Alarm by video sensor, by privacy mask, by video loss, IP camera
    Playback of up to 16 channels
    Internal capacity for 1 SATA HDD up to 10TB (sold separately)
    New user interface with a simpler user experience
    Supports perimeter protection, SMD Plus and heat map functions of compatible DAHUA cameras
    Supports smart search by metadata
    Supports ANR (automatic network replenishment technology): In case of network failure, images are recorded on the IP camera's SD card, which are transferred to the NVR once the network is restored
    Software and hardware watchdog
    Watermark to preserve the integrity of the videos
    RJ45 Fast Ethernet network port (10 / 100Mbps)
    8 PoE ports (10 / 100Mbps) with an output power of 25.5W per port and a total of 72W
    Network protocols: HTTP, HTTPS, TCP / IP, IPv4, RTSP, UDP, NTP, DHCP, DNS, P2P
    ONVIF (Profile S), CGI and SDK compliant
    Remote access from web browser (IE9, Chrome, Firefox) and iPhone, iPad (iDMSS) and Android (gDMSS) devices
    Server Access local network and Internet
    Possibility of limiting user access to cameras in local and / or remote mode
    Can be remotely controlled by Joystick keyboard connected by TCP / IP
    Sending emails with attached photograph in alarm
    Send to FTP scheduled or in alarm
    Possibility of sending alarm, and being connected to video surveillance receiver software
    Possibility of fixed or dynamic IP through Dyndns service, NoIP, DDNS Evolution, etc.
    Communication ports: 2 USB 2.0 ports
    Power supply: 48V DC / 53V DC, 2A / 1.8A (≤10W, not counting discs)
    -10 ° C ~ + 55 ° C operating temperature
    10% ~ 90% relative humidity
    Dimensions: 260 (W) x 50.3 (H) x 232.5mm
    Weight: 920g
    Desktop installation
