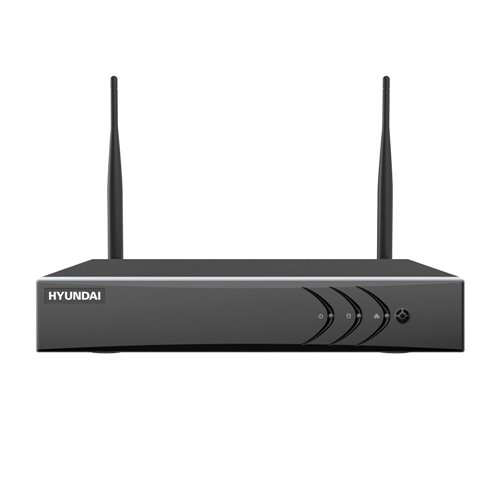

NVR3108-WIFI - 8-channel WiFi IP NVR. H.265 + / H.…

Features

• NVR3108-WIFI
• Up to 8 IP cameras can be connected
• 50 Mbps incoming bandwidth
• Recording up to 4 megapixels
• H.265 + / H.265 / H.264 + / H.264 compression
• Connectable with third-party IP cameras
• VGA and HDMI outputs with a resolution of up to 1920x1080
• Supports playback of 1 channel at 4 megapixels or 2 channels at 1080P
• Synchronized playback of up to 8 channels
• Supports intrusion detection and line crossing
• Smart search
• Capacity for 1 HDD up to 6TB
• RJ45 100Mbps network interface
• It incorporates WiFi
• Up to 16 devices (including mobile and portable) can be connected via WiFi
• The external dual antenna design offers a more powerful and stable signal


Specifications

• NVR3108-WIFI
• 4-channel IP NVR format H.265 + / H.265 / H.264 + / H.264
• 8 IP camera inputs
• Incoming bandwidth: 50 Mbps
• Outgoing Bandwidth: 40 Mbps
• VGA (1080P) and HDMI (1080P) video output
• RCA audio output
• Recording resolution: 4MP, 3MP, 1080P, 1.3MP, 720P
• 8-channel synchronized playback
• Capacity of 1 channel 4MP at 25 fps or 2 channels 1080P at 25 fps
• Capacity for 1 HDD up to 6TB (HDD not included)
• 2x2 MIMO WiFi antenna
• IEEE 802.11b / g / n WiFi standard
• 2.4GHz wireless frequency
• 144 Mbps wireless transmission
• RJ45 (10 / 100M) Ethernet network interface auto-adaptive
• Connections: 2 USB 2.0
• Power: 12V DC
• Consumption: ≤12W (without hard disk)
• Operating temperature: -10 ° C ~ + 55 ° C
• Relative humidity: 10 ~ 90%
• Dimensions: 246 x 246 x 48 mm (1U)
• Weight: ≤1 kg
