incl. VAT€6130,07
Price incl. VAT: €6130,07
Ex. VAT: €4904,06
Total discount:
VAT: €1226,01

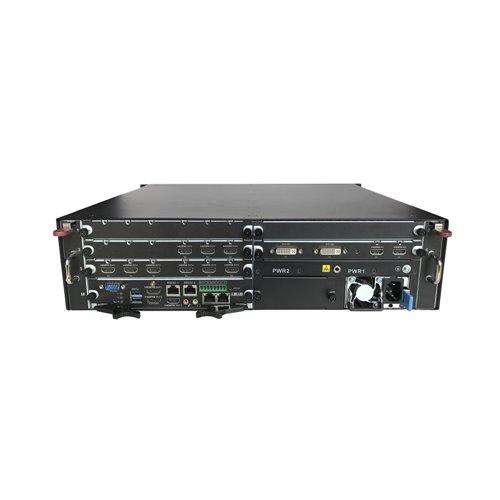

IP decoder for video signals up to 12MP. H.265 / H.264 / MPEG2 / MJPEG formats. 2 HDMI inputs + 2 DVI-I inputs. 12MP, 4K / 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 720P resolution etc. Two-way audio. 2 inputs / 1 alarm outputs. 2 RJ45 Gigabit ports, 3 RS232 ports, 1 RS485 port, 3 USB port. 220V AC. 2.5U
Sold out / Not on stock
Product description: NVD1205DH-4I-4K
Features
- NVD1205DH-4I-4K
- Standard 2.5U enclosure
- Pluggable board design for easy maintenance and use
- H.265 / H.264 / MPEG2 / MJPEG video decoding
- Ultra high decoding capacity, up to 12 megapixels
- 2-channel HDMI (4K compatible) and 2-channel DVI-I input
- Supports 1/4/9/16 split
- Support audio, alarm, two-way talk, RS485
- Screen splice control for zoom / merge / roam / overlay
- Supports redundant, stable and reliable power
Specs
- NVD1205DH-4I-4K
- IP decoder for video signals up to 12MP
- Embedded processor
- Linux operating system
- Slots: 1 motherboard, 1 6-channel decoding board, 1 3-channel decoding board, 1 collector board, 2 blank panels
- H.265 / H.264 / MPEG2 / MJPEG video format
- PCM / G711 / AAC audio format
- Separate decoding, ports 1/2/3, 4/5/6, 7/8/9, 11/10/12: 3 channels at 12MP, 4 channels at 8MP / 4K, 8 channels at 5MP, 10 channels at 3MP , 16 channels at 1080P, 36 channels at 720P, 48 channels at D1
- Full decoding capacity: 12 channels at 12MP, 16 channels at 8MP / 4K, 32 channels at 5MP, 40 channels at 3MP, 64 channels at 1080P, 144 channels at 720P, 192 channels at D1
- Decoding Resolution: 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 720P, 960H, D1, HD1, 2CIF, CIF, QCIF
- Display resolution: 3840x2160, 2560x1600, 1920x1080, 1280x1024, 1280x720, 1024x768
- 2 HDMI inputs + 2 DVI-I inputs
- Collector resolution: 3840x2160, 1920x1080, 1600x1200, 1680x1050, 1440x900, 1400x1050, 1366x768, 1280x1024, 1280x960, 1280x800, 1280x720, 1152x864, 1024x768, 800x600, etc.
- Departure division 1/4/9/16
- Two-way audio: 1 audio input / 1 audio output
- 12 HDMI outputs
- 2 inputs / 1 alarm output
- 2 RJ45 ports (10/100 / 1000M)
- 3 RS232 ports (1 DB9 connector + 2 RJ45 connectors)
- 1 RS485 port
- 2 USB 3.0 ports + 1 USB 2.0 port
- Power: 100V ~ 127V AC, 200V ~ 240V AC, 47 ~ 63Hz
- Consumption: ≤180W
- 10 ° C ~ + 55 ° C operating temperature
- 10% ~ 95% operating humidity
- Dimensions: 440 x 436.6 x 110mm (2.5U)
- Weight: 11.25 kg
