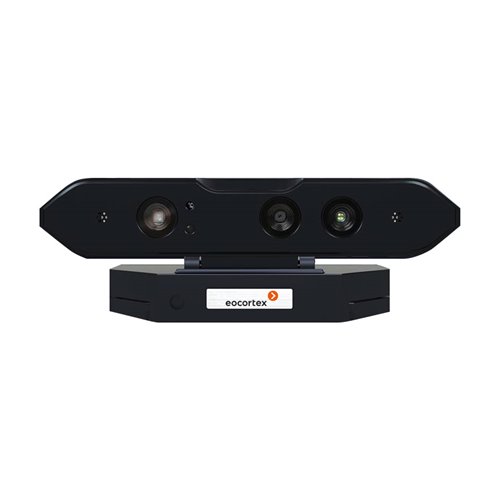

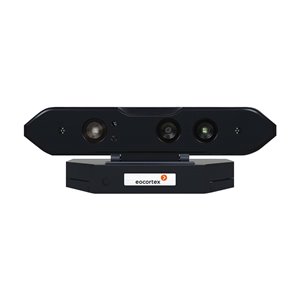

MACRO-66 - 3D camera for people counter. Disti…

Main advantatges
- Distinguish between adults, kids, pets and shopping carts
- Can count large numbers of people simultaneously, even in groups in movement
- The count is not affected by changes in lighting, shadows or reflections
- Optimal functioning in bad lighting conditions
- Precision level of up to 98.6%

Possibilities
- Specify the minimum height of the objects to count in order of exclusion, for example, shopping trolleys and baby carts. The system counts all visitors entering and leaving
- Creation of reports and charts broken down by hours, days, months and years, based on data obtained from several cameras
- Export of data in CSV format

Specifications
- Image resolution: 640x480 (VGA)
- Images per second: 10 ips
- Compression format: H.264
- Counting scan speed: 30 ips
- Angle of vision: 60 ° (H); 50 ° (V)
- Installation height: 2.5 ~ 4 meters
- Minimum height of objects to count: 0.5 ~ 2.2 meters
- Operating temperature: + 10 ° C ~ + 40 ° C
- Power: 5V DC, 2.5A
- Dimensions: 172 x 63 x 56 mm
- Weight: 800 g

Notes:
- Includes an ADVANCED 3D counting module from Eocortex
- Requires camera license LS (MACRO-3, MACRO-4) or ST (MACRO-15, MACRO-16)
