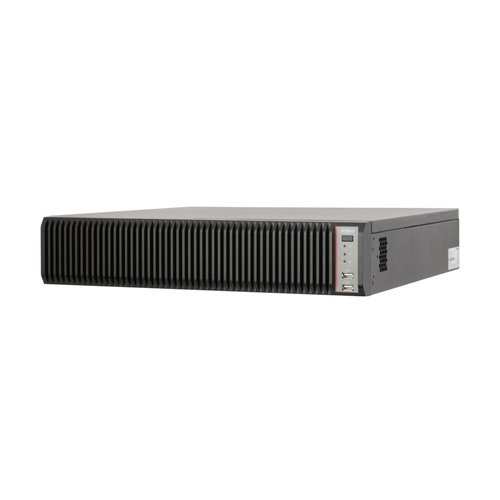

IVSS7008-1I - Dahua Super IP NVR (IVSS) with 128…

Dahua AI series products adopt the most ADVANCED Artificial Intelligence technologies, including deep learning algorithms primarily targeting people and vehicles, providing greater flexibility and accuracy for end users. This enables DAHUA AI series to offer various ADVANCED applications such as facial recognition, ANPR, metadata, people counting, traffic statistics, etc.

Dahua's complete AI Series line includes IP cameras, IP PTZ domes, NVRs, servers, and security system management products. Beyond seeing the world, the power of Artificial Intelligence allows devices to perceive the environment and understand the world in a better way.



specs

    Embedded industrial range processor
    Embedded LINUX operating system
    Web operation interface (PCAPP) or local graphical user interface
    Video encoding H.265 +, H.265, H.264 + and H.264
    G.711A, G.711U, PCM and G.726 audio encoding
    Video parameters:
        128 IP camera inputs
        Input bandwidth: 400Mbps
        Recording bandwidth: 320Mbps
        Output bandwidth: 96Mbps
        Recording resolution: 12MP, 4K / 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 960P, 720P, D1, CIF, QCIF
        Decoding Capability: 5ch at 12MP / 20ips, 6ch at 12MP / 15ips, 5ch at 8MP / 30ips, 10ch at 8MP / 15ips, 6ch at 6MP / 30ips, 8ch at 5MP / 30ips, 9ch at 5MP / 25ips, 10ch at 4MP / 30ips, 15ch at 4MP / 20ips, 16ch at 3MP / 25ips, 10ch 1080P / 60ips, 20ch 1080P / 30ips, 30ch 720P / 30ips
        Video outputs: 2 VGA outputs, 3 HDMI outputs (4K support), simultaneous VGA1 and HDMI1 outputs, simultaneous VGA2 and HDMI2 outputs
        Multiscreen: custom display, up to 36 channel live view, up to 16 channel PCAPP live view
        Third party support: Onvif, RTSP, Sony, Panasonic, Axis, Arecont,
        Pelco, Canon, Samsung
    Perimeter protection:
        Perimeter protection channels with SVR AI: Up to 16 channels
        Perimeter protection channels with AI from AI cameras: Up to 64 channels
    Face detection:
        Supports 6 facial properties: gender, age range (6 levels), glasses, facial expression (8 types), mask and beard
        Detection performance with SVR AI: 8ch 1080P
        Detection performance with the AI ??of AI cameras: 20 channels 1080P
    Facial recognition:
        Up to 50 facial databases with up to 300,000 facial images in total
        Recognition performance with SVR AI: 8 channels with conventional IP cameras, 20 channels with face detection IP cameras (analysis of 20 facial images per second)
        Recognition performance with AI from AI cameras: 20 channels
    License plate recognition (ANPR):
        Capacity: Up to 50 license plate databases with up to 300,000 total license plates, supports black and white lists
        License plate detection performance with ITC cameras: 32 channels
    Video metadata:
        People properties: top color, top type, bottom color, bottom type, cap, bag, age, gender and umbrella
        Vehicle properties: plate, plate color, vehicle body, vehicle make, driver's call, seat belt status, decoration object on the vehicle and vehicle registration place
        Non-motorized vehicle properties: vehicle type, color, number of people and helmet
        Metadata performance with IVSS AI: up to 4 channels 1080P
        Metadata performance with AI from AI cameras: up to 32 channels
    Artificial intelligence:
        Supports AI by camera function: face detection, face recognition, video metadata (people / vehicle / non-motorized vehicle), perimeter protection
        Supports AI via IVSS function: face detection, face recognition, video metadata (people / vehicle / non-motorized vehicle), perimeter protection
    Net:
        Network protocols: HTTP, HTTPS, TCP / IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P
        Mobile phone: DMSS
        Interoperability: ONVIF (Profile S / T / G), CGI, SDK
        Web browsers: Chrome, PCAPP, IE9 or higher and Firefox
        Network modes: NIC link mode, such as multi-address mode, load balancing, fault tolerance, etc.
    Reproduction:
        Playback of up to 16 channels
        Record Search: Video Detection, Manual Record, Alarm, Smart Event, All Recordings
        Storage methods: Internal HDD, SAS
        Backup methods: HDD, external USB devices
        Playback functions: play, pause, stop, fast forward, fast reverse, reverse playback, frame-by-frame playback, full screen, backup (video clip / file), image capture, digital zoom and audio on / off
    Storage:
        Up to 8 HDD
        RAID 0/1/5/6/10
    Alarm:
        General alarm: video sensor, image masking, local alarm
        Anomaly Alarm: IP Camera Offline Alarm, Storage Error, HDD Full, IP Conflict, MAC Conflict, Login Lock, AI Module Temperature Alarm, AI Module Offline, Fan Malfunction
        Smart alarm: Face detection, face recognition, video metadata (person / vehicle / non-motorized vehicle), perimeter protection (intrusion, tripwire), license plate recognition
        Alarm link: Record, image capture, local external alarm output, IP cameras external alarm output, access and control, audio prompt, buzzer, record, preset, email
    Interface:
        1 RCA audio input / 2 outputs
        16 alarm inputs / 8 outputs
        8 SATA III slots for HDD up to 10TB (HDD not included)
        1 eSATA port
        1 RS232 port for debugging or transparent COM data
        1 RS485 port for PTZ peripherals in various protocols
        1 USB 2.0 ports (front panel) and 2 USB 3.0 ports (rear panel)
        3 HDMI ports with 4K support
        2 VGA ports
        4 RJ45 Gigabit Ethernet ports (10/100 / 1000M) self-adaptive
        1 power port
    General parameters:
        Power supply: 100V ~ 240V AC, 50Hz (± 2%)
        Consumption: 40W (without hard drives)
        Operating temperature: 0 ° C ~ + 45 ° C
        Operating relative humidity: 10% ~ 90%
        Operating height: up to 5,000 meters
        Storage temperature: 0 ° C ~ + 40 ° C
        Operating relative humidity: 30% ~ 85%
        Installation mode: desktop or rack
        Dimensions: 439.7 x 446.2 x 89 mm
        Weight: 8.55 kg
