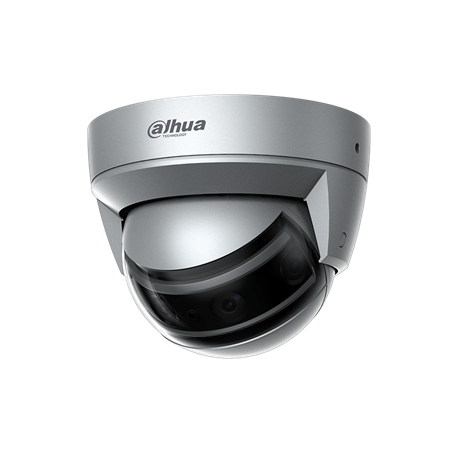

IPC-PDBW8840-A180 - 180 ° multi-lens panoramic IP dome…

SKU: IPC-PDBW8840-A180

dahua-2678-fo_dh-ipc-pdbw8840-a180-flank

incl. VAT€2323,02

Price incl. VAT: €2323,02

Ex. VAT: €1858,42

Total discount:

VAT: €464,60

180 ° multi-lens panoramic IP dome with 30 m IR illumination, vandal resistant for outdoors. H.265 + / H.265 // H.264 + / H.264 format. 4 units 1 / 2,8 ""progressive CMOS. Triple stream. Resolution up to 4096x1800. 2.8 mm fixed lens (H: 180 °, V: 90 °). 16X digital zoom. ICR filter. 0.007 lux. OSD, AWB, AGC, BLC, HLC, digital WDR, 3D-DNR, 4-zone ROI, video sensor and privacy masks. Intelligent Video Detection (IVS). Heat map, E-PTZ. 1 audio input / 1 output. 2 alarm inputs / 2 outputs. MicroSD slot. Onvif, PSIA, CGI. Unicast / Multicast. IP67, IK10, Lightning-proof 6KV. 24V AC. PoE.

Few left on stock

Back to: Dahua New

Product description: IPC-PDBW8840-A180

Description

WizMind

- Quad sensor: Four 1 / 2,8 ”progressive CMOS units
- Compression format H.265 + / H.265 / H.264 + / H.264
- Digital resolution: 4096x1800, 3840x1680, 2880x1264, 1920x832, 1280x560, 1024x452
- Main Stream: 4096x1800 (1 ~ 25 ips)
- Sub stream 1: 1024x452 (1 ~ 25 ips)
- Sub stream 2: 1920x832 (1 ~ 25 ips)
- Day / night mode with removable mechanical filter
- Smart IR: 6 leds, 30 meters
- Minimum illumination: 0.002 Lux @ F1.6
- 3mm fixed lens (H: 180 °, V: 90 °)
- 5 settings white balance
- Automatic and manual gain control
- Backlight compensation (BLC, HLC)
- Digital WDR
- 3D-DNR noise reduction
- Video sensor with 4 rectangular zones
- Privacy mask with 4 rectangular zones
- ROI: 4 areas of interest
- Intelligent Video Analysis (IVS): Line Crossing, Intrusion, Abandoned / Lost Objects
- AI functions: density of vehicles, density of people
- Smart functions: Heat map, E-PTZ
- 1 audio input / 1 output
- 2 alarm inputs / 2 outputs
- MicroSD card slot (up to 128GB, card not included)
- Network interface: RJ45 (100/1000 Base-T)
- Network protocols: HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4, IPv6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP
- Compatible with ONVIF, PSIA, CGI
- Streaming method: Unicast, Multicast
- Up to 20 users
- Power supply: 12V DC / 24V AC, <14.9W
- Supports PoE + (802.3at, Class4)
- Operating temperature of -40 ° C ~ + 60 ° C
- Humidity: <95%
- Lightning-proof 6KV
- Degree of protection IP67
- IK10 vandal protection
- Metal housing
- Dimensions: Ø212 x 169.5 mm
- Weight: 3.65 kg
