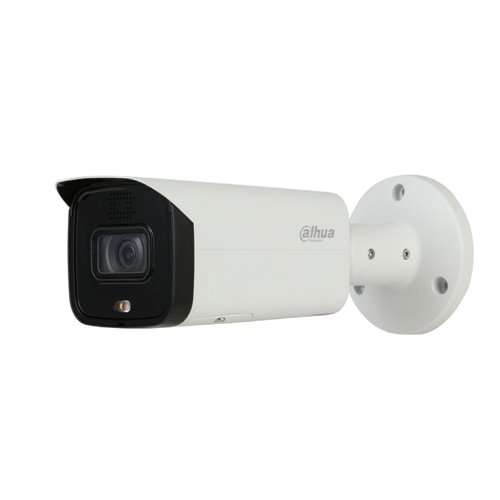

IPC-HFW5541T-AS-PV - AI Series StarLight IP bullet camer…

Features

1 / 2.7 ”5 megapixel CMOS sensor
H.265 and H.264 encoding with triple stream
5MP (2592x1944) resolution at 20 ips, 1080P (1920x1080) at 25 ips
WDR 120dB, day / night (ICR), 3D-DNR, AWB, AGC, BLC
Multiple remote monitoring via web browser, CMS (DSS / PSS) and DMSS
2.8mm fixed lens
Smart IR range up to 60 meters
1 audio input / 1 output (built-in speaker)
1 alarm input / 1 output
Incorporates microphone
MicroSD slot
IP67
Supports PoE

Specs

1 / 2.7 ”5 megapixel CMOS sensor
Compression formats: H.265 + / H.265 / H.264 + / H.264 / MJPEG
Digital resolution: 5MP (2592x1944), 4MP (2688x1520), 4MP (2560x1440), 3MP (2304x1296), 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), D1 (704x576), VGA (640x480), CIF (352x288)
Stream 1: 5MP (1 ~ 20 ips), 4MP (1 ~ 25 ips), 1080P (1 ~ 50 ips)
Stream 2: D1 (1 ~ 20 ips), D1 (1 ~ 50 ips)
Stream 3: 1080P (1 ~ 17 ips)
Day / night mode with removable mechanical filter
Smart IR: 1 white led + 2 IR leds, 60 meters
0.005 lux F1.6
2.8mm fixed lens
Viewing angle: 102 ° (H), 71 ° (V)
White Balance: Auto, Natural, Street Light, Outdoor, Manual
Automatic and manual gain control
Backlight compensation: BLC, HLC
WDR 120dB
3D-DNR digital noise reduction
4 ROI zones
4-zone rectangular video sensor
4 Rectangular Zone Privacy Mask
Defog
Mirror mode
Artificial intelligence:
Perimeter protection: Line crossing, Intrusion (classification of people / vehicles)
People counting: Supports counting by line crossing, region crossing
Supports 4 independent detection accesses and 4 independent detection areas
Intelligent Detection (IVS): Changes in the scene, abandoned / lost objects
1 audio input / 1 output (built-in speaker)
1 alarm input / 1 output
MicroSD card slot up to 256GB (not included)
Network interface: RJ45 (10/100 Base-T)
Network protocols: HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, IPv4 / v6, SNMP, QoS, UPnP, NTP, ICMP, HTTPS, IGMP, 802.1x
Compatible with ONVIF (Profile S / G), CGI, Milestone, P2P
Unicast / Multicast streaming method
Up to 20 users
Remote viewing through IE, Chrome, Firefox and Safari browsers
Smart PSS, DSS, P2P management software
Compatible with IOS and Android mobile devices
Power supply: 12V DC
Consumption: <8.5W
Supports PoE (802.3 af, Class 0)
IP67
Storage temperature -30 ° C ~ + 60 ° C
-30 ° C ~ + 60 ° C operating temperature
Humidity: 10% ~ 95%
Metal case
Dimensions: 79 (W) x 75.9 (H) x 244.1 mm
Weight: 815 g
3AXIS: 0 ° ~ 360 ° (PAN), 0 ° ~ 90 ° (TILT), 0 ° ~ 360 ° (Rotation)
Does not include power supply
