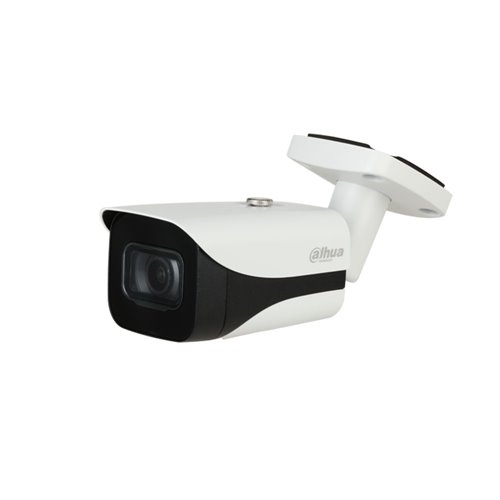

IPC-HFW5541E-SE - Dahua AI Series IP bullet camera wi…

Features

    1 / 2.7 ”5 megapixel CMOS sensor
    H.264 and H.265 encoding with triple stream
    Resolution 5MP (2592x1944) at 20 ips, 1080P (1920x1080) at 50 ips
    WDR 120dB, day / night with ICR filter, 3D-DNR, AWB, AGC, BLC
    Multiple remote monitoring via web browser, CMS (DSS / PSS) and DMSS
    2.8mm fixed lens
    Smart IR up to 50 meters
    MicroSD slot
    Degree of protection IP67
    Supports PoE / ePoE

Specs

    1 / 2.7 ”5 megapixel CMOS sensor
    Compression formats: H.265 / H.264 / MJPEG
    Digital resolution: 5MP (2592x1944), 4MP (2688x1520; 2560x1440), 3MP (2304x1296), 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), D1 (704x576), VGA (640x480), CIF (352x288 )
    Stream 1: 4MP (2592x1944 at 1 ~ 20 ips, 2560x1440 at 1 ~ 25 ips), 1080P (1 ~ 50 ips)
    Stream 2: D1 (1 ~ 20 ips), D1 (1 ~ 50 ips)
    Stream 3: 1080P (1 ~ 17 ips)
    Day / night mode with removable mechanical filter
    Smart IR: 2 LEDs, 50 meters
    0.005 lux F1.6
    2.8mm fixed lens
    Viewing angle: 102 ° (H), 71 ° (V)
    White Balance: Auto, Natural, Street Light, Outdoor, Manual
    Automatic and manual gain control
    Backlight compensation: BLC, HLC
    WDR 120dB
    3D-DNR digital noise reduction
    4 ROI zones
    4-zone rectangular video sensor
    4 Rectangular Zone Privacy Mask
    Defog
    Mirror mode
    Artificial intelligence:
        Face detection: Face detection; channel; improvement; capture; facial enhancement; facial exposure; face mat setting: face, one-inch photo; three snapshot methods: real-time snapshot, optimization snapshot, quality priority; facial angle filter; optimization time setting.
        Perimeter protection: Line crossing, intrusion, rapid movement (all three functions support people / vehicle classification), loitering detection, people gathering, parking detection.
        People count: Count of people entering / leaving, people passing; shows / generates annual / monthly / daily reports. Supports counting people in one area and setting 4 rules. Count of the number of people or time of stay and alarm link. Supports queue management and 4-rule configuration.
    Intelligent Detection (IVS): Abandoned / Lost Objects, Heat Map
    MicroSD card slot up to 256GB (not included)
    Network interface: RJ45 (10/100 Base-T)
    Network protocols: IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, 802.1x, SNMP
    Compatible with ONVIF (Profile S / G / T), CGI, Milestone, P2P, SDK, API
    Up to 20 users
    Remote viewing through IE8 +, Chrome, Firefox and Safari12 + browsers
    Smart PSS, DSS, DMSS management software
    Compatible with IOS and Android mobile devices
    Power supply: 12V DC (± 30%)
    Consumption: <6.8W
    Supports PoE (802.3 af)
    Supports ePoE: full duplex transmission of more than 800 meters at 10 Mbps or 300 meters at 100 Mbps over Cat5 or coaxial cable
    Degree of protection IP67
    Storage temperature -40 ° C ~ + 60 ° C
    -40 ° C ~ + 60 ° C operating temperature
    Relative humidity: <95%
    Metal and plastic housing
    Dimensions: 70 (W) x 70 (H) x 182.3 mm
    Weight: 470 g
    3AXIS: 0 ° ~ 360 ° (PAN), 0 ° ~ 90 ° (TILT), 0 ° ~ 360 ° (Rotation)
    Does not include feeder
