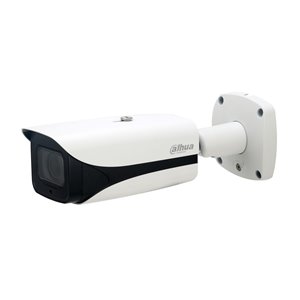

IPC-HFW5241E-Z12E - IP Dahua vandal bullet camera AI Se…

Features

• IPC-HFW5241E-Z12E
• 1/2,8” CMOS sensor, 2 MP
• H.265 and H.264 with triple stream
• 1080P (1920x1080) at 50 fps
• WDR 120dB, day/night with ICR filter, 3D-DNR, AWB, AGC, BLC
• Multiple remote monitoring via web browser, CMS (DSS/PSS) and DMSS
• 5,3 ~ 64 mm motor lens
• IR up to 150 meters
• Alarm: 2 in / 1 out
• Audio: 1 in / 1 out
• MicroSD slot
• IP67
• IK10
• ePoE supported

Specs

• IPC-HFW5241E-Z12E
• 1/2,8” CMOS sensor, 2 MP
• H.265 / H.264 / MJPEG
• 1080P (1920x1080), 1,3MP (1280x960), 720P (1280x720), D1 (704x576), VGA (640x480), CIF (352x288)
• Stream 1: 1080P (1~50/60 fps)
• Stream 2: D1 (1~50/60 fps)
• Stream 3: 1080P (1~25/30 fps)
• Day/night mode with removable mechanical filter
• Smart IR: 4 leds, 150 meters
• 0,002 lux F1.5
• 5,3 ~ 64 mm motor lens
• Viewing angle: 58°~4°(H), 34°~2°(V)
• White balance: Auto, Natural, Light, Outdoor, Manual
• Gain control: auto and manual
• Backlight compensation: BLC, HLC
• WDR 120dB
• 3D-DNR
• 4 ROI
• Motion detection of 4 rectangular zones
• Privacy mask of 4 rectangular zones
• EIS
• Defog
• Mirror mode
• AI:
  • IPC-HFW5241E-Z12E
  • Face detection: Facial image capture
  • Face attributes: Support 6 kinds of face attributes extraction: Age, Gender,Expression (Jolly, Surprise, Normal, Rage, Sad, Disgusted, Confused, Frightened), Glasses, Mouth Mask, Moustache & Beard
  • Perimeter Protection: Tripwire, intrusion (Recognition of vehicle and people)
  • People counter: Support Line crossing/Region/Queueing people counting
  • Supports 4 accesses independent detection, 4 areas independent detection
• IVS: Scene change, abandoned/lost objects, heat map
• Audio: 1 in / 1 out
• Alarm: 2 in / 1 out
• MicroSD card slot up to 256GB (not included)
• Network interface: RJ45 (10/100 Base-T)
• Network protocols: IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, 802.1x, SNMP
• Compatible con ONVIF (Profile S/G/T), CGI, Milestone, P2P
• Unicast / Multicast streaming method
• Up to 20 users
• Remote display via IE8+, Chrome, Firefox and Safari+12
• Software management Smart PSS, DSS, DMSS
• Compatible with IOS and Android
• Power supply: 12V DC
• Consumption: <10,3W
• PoE supported (802.3 af, Class 0)
• ePoE supported: Full duplex transmission of more than 800 meters at 10 Mbps or 300 meters at 100 Mbps through Cat5 or coaxial cable
• IP67
• IK10
• Storage temperature -30°C ~ +60°C
• Working temperature -30°C ~ +60°C
• RH: 10% ~ 95%
• Metal and plastic case
• Dimensions: 88,9 (W) x 79,7 (H) x 273,2 mm
• Weight: 1,11 kg
• 3AXIS: 0°~360°(PAN), 0°~90°(TILT), 0°~360°(Rotation)
• Power supply is not included
