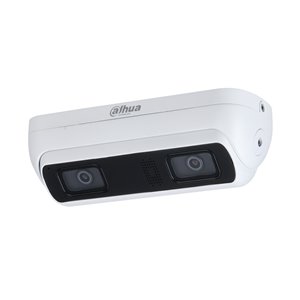

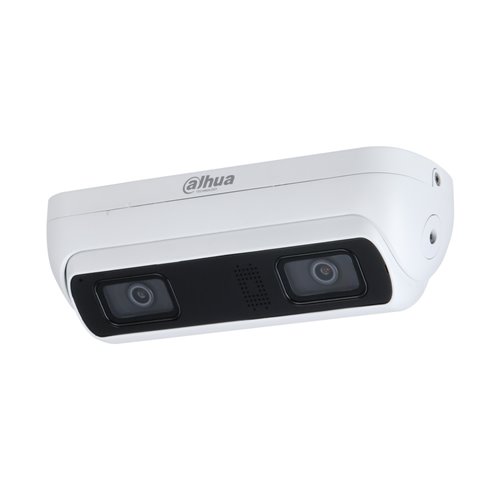

IPC-HDW8341X-3D-S2 - Dahua smart IP camera for people co…

Equipped with ADVANCED HiSilicon chip and fast lens, DAHUA WizMind Dual-Lens series IP camera provides excellent image effects. With an ADVANCED Deep-Learning algorithm, the camera supports various intelligent functions such as people counting, queue management, stereo analysis, perimeter protection and face detection, providing better intelligent scene-based application solutions.

specs

    1 / 2.8 ”CMOS sensor, 3 megapixels
    Compression format H.265 + / H.265 / H.264 + / H.264 / MJPEG
    Digital Resolution: 3MP (2048x1536), 1080P (1920x1080), 720P (1280x720), D1 (704x576), VGA (640x480), CIF (352x288)
    Stream 1: 3MP (1 ~ 25 ips)
    Stream 2: D1 (1 ~ 25 ips)
    Stream 3: 1080P (1 ~ 25 ips)
    Stream 4: 1080P (1 ~ 25 ips)
    Stream 5: D1 (1 ~ 25 ips)
    Day / night mode with removable mechanical filter
    Smart IR: 20 meters
    0.005 lux F1.6
    2.8mm fixed lens
    Viewing angle: 96 ° (H), 70 ° (V), 128 ° (D)
    White Balance: Auto, Daylight, Street Light, Manual Outdoor, Regional Settings
    Automatic and manual gain control
    Backlight compensation (BLC, HLC)
    Digital WDR
    3D-DNR noise reduction
    4 ROI zones
    4-zone rectangular video sensor
    4 zone privacy mask
    Defog
    Smart Features: Perimeter Protection (Line Crossing, Intrusion Detection, Fast Motion, Loitering Detection, People Gathering Detection, Parking Detection), Face Detection, People Counting (Line Crossing Counting, People Counting in a area, queue management, 4 line crossing rules, 4 counting zones, and 4 queue management), smart search
    Incorporates microphone and speaker
    2 RCA inputs / 1 RCA audio outputs
    2 alarm inputs / 2 outputs
    1 RS485 port (1200 ~ 115200bps)
    MicroSD card slot up to 256GB (card not included)
    Network interface: RJ45 (10/100 Base-T)
    Network protocols: IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, 802.1x, SNMP
    Compatible with ONVIF (Profile S / G / T), CGI, Milestone, P2P, RTMP, SDK, API
    Up to 20 users
    Compatible with IE9, IE11, Firefox, Chrome browsers
    Smart PSS, DSS, NVR, IVSS management software
    Compatible with iOS and Android mobile devices
    Power: 12V DC
    Maximum consumption: 9.1W
    Supports PoE
    Storage temperature -40 ° C ~ + 60 ° C
    -40 ° C ~ + 60 ° C operating temperature
    Humidity: <95%
    Degree of protection IP67
    IK10 vandal protection
    Metal housing
    Dimensions: 204 (W) x 61.5 (H) x 78 mm
    Weight: 810 g
    Power supply is sold separately
