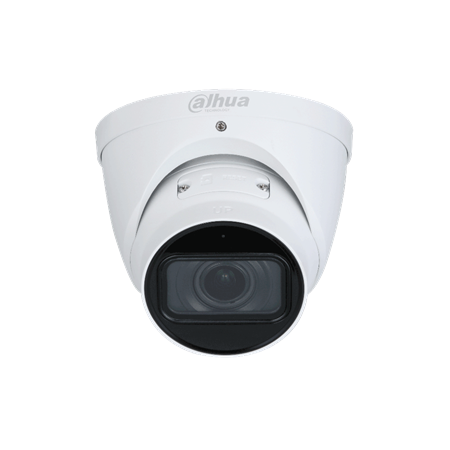

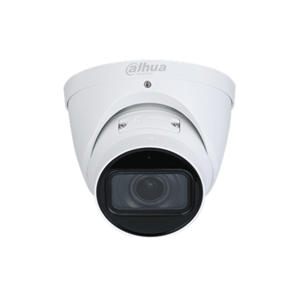

IPC-HDW5442TP-ZE-2712 - AI Series StarLight fixed IP dome w…

Features

    1 / 1.8 ”4 megapixel CMOS sensor
    H.265 and H.264 encoding with triple stream
    Resolution 4MP (2688x1520) at 25 ips, 1080P (1920x1080) at 50 ips
    WDR 140dB, day / night with electronic filter, 3D-DNR, AWB, AGC, BLC
    Remote multiple monitoring via web browser, CMS (DSS / PSS) and DMSS
    2.7 -12 mm varifocal motorized lens
    IR LEDs with a range of up to 40 meters
    MicroSD slot
    Degree of protection IP67
    Supports ePoE



Specs

    1 / 1.8 ”4 megapixel CMOS sensor
    Compression formats: H.265 + / H.265 / H.264 + / H.264 / MJPEG
    Digital Resolution: 4MP (2688x1520), 4MP (2560x1440), 3MP (2304x1296), 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), D1 (704x576), VGA (640x480), CIF (352x288)
    Stream 1: 4MP (1 ~ 25 ips), 1080P (1 ~ 50 ips)
    Stream 2: D1 (1 ~ 20 ips), D1 (1 ~ 50 ips)
    Stream 3: 1080P (1 ~ 16 ips)
    Day / night mode with electronic filter
    2 IR LEDs, 40 meters
    0.003 lux F1.8
    2.7 -12 mm varifocal motorized lens
    Angle of view: 114 ° - 47 (V), 62 ° -26 ° (V), 136 ° -54 ° (D)
    White Balance: Auto, Natural, Street Light, Outdoor, Manual
    Automatic and manual gain control
    Backlight compensation: BLC, HLC
    WDR 140dB
    3D-DNR digital noise reduction
    4 ROI zones
    4-zone rectangular video sensor
    4 Rectangular Zone Privacy Mask
    Defog
    Mirror mode
    Artificial intelligence:
        Face Capture: Supports captures of facial images
        Perimeter protection: Line crossing, Intrusion (classification of people / vehicles)
        People counting: Supports counting by line crossing, region crossing
        Supports 4 independent detection accesses and 4 independent detection areas
    Intelligent detection (IVS): Changes in the scene, abandoned / lost objects
    Incorporates micron
    MicroSD card slot up to 256GB (not included)
    Network interface: RJ45 (10/100 Base-T)
    Network protocols: IPv4; IPv6; HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, IPv4 / v6, SNMP, QoS, UPnP, NTP, ICMP, HTTPS, IGMP, 802.1x
    Compatible with ONVIF (Profile S / G), CGI, Milestone, P2P
    Unicast / Multicast streaming method
    Up to 20 users
    Remote viewing through IE, Chrome, Firefox and Safari browsers
    Smart PSS, DSS, P2P management software
    Compatible with IOS and Android mobile devices
    Power: 12V DC
    Consumption: <7.5W
    Supports PoE (802.3 af, Class 0)
    Degree of protection IP67
    Storage temperature -40 ° C ~ + 60 ° C
    -30 ° C ~ + 60 ° C operating temperature
    Humidity: 10% ~ 95%
    Metal housing
    Dimensions: Ø122 x 108.3 (Al) mm
    Weight: 740 g
    3AXIS: 0 ° ~ 360 ° (PAN), 0 ° ~ 78 ° (TILT), 0 ° ~ 360 ° (Rotation)
    Does not include feeder
