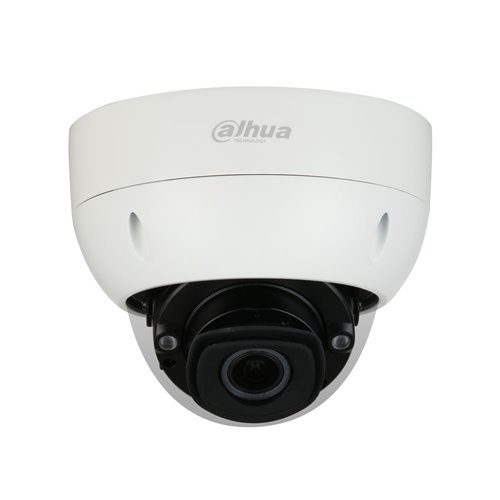

IPC-HDBW7442H-Z4 - Dahua WizMind IP fixed dome with Sm…

Specs

    Image Sensor 1 / 1.8 "4 Megapixel CMOS
    Resolution: 4MP (2688x1520), 3MP (2304x1296), 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), D1 (704x576), VGA (640x480), CIF (352x288)
    Smart H.265 +, Smart H.264 +, H.265, H.264 and MJPEG video compression
    Stream 1: 4MP (1 ~ 50 ips)
    Stream 2: D1 (1 ~ 25 ips)
    Stream 3: 1080P (1 ~ 25 ips)
    Stream 4: 1080P (1 ~ 25 ips)
    Stream 5: D1 (1 ~ 25 ips)
    Day / night mode with removable mechanical filter (ICR)
    0.001 lux F1.6
    Smart IR: 3 LEDs, up to 80 meters
    8 ~ 32mm motorized lens
    Viewing angle: 40 ° ~ 15 ° (H), 23 ° ~ 9 ° (V), 46 ° ~ 18 ° (D)
    Image modes: BLC, HLC, WDR 140dB, 3D-DNR, Image Stabilizer (EIS), Defog, Mirror
    White balance with 6 modes
    Automatic and manual gain control
    Supports 4-zone video sensor, 4 regions of interest (ROI) and 4-zone privacy mask
    Intelligent Video Detection (IVS): Abandoned / Lost Object Detection, Moving Object Detection
    Perimeter protection with line crossing detection, intrusion detection, fast motion detection (all three modes support person / vehicle classification), loitering detection, people gathering detection and parking detection
    Face detection with three methods of capturing and extracting 6 attributes and 8 facial expressions
    ANPR: Automatic collection and recognition of vehicle information, including license plate, logo, vehicle type and color
    Video metadata: Image capture and attribute extraction of people, faces and vehicles
    People count: Count of entry / exit of people and the number of people who pass; display and generate annual / monthly / weekly / daily reports; Supports counting people in an area and setting 4 rules
    Smart Search: Work together with Smart NVR to perform refined smart search, event extraction and merge to event video
    MicroSD card slot up to 256GB (card not included)
    1 audio input / 1 output
    3 alarm inputs / 2 outputs
    RS485 port
    Network interface: RJ45 (10/100/1000 Base-T)
    Network protocols: HTTP, HTTPS, 802.1x, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, IPv4 / v6, SNMP, QoS, UPnP, NTP, SFTP, RTMP , Bonjour, Multicast
    Remote viewing with browsers (IE9, Chrome 42, Firefox 48.0.2) and IOS and Android smartphones
    Smart PSS, DSS and DMSS management software
    Interoperability: ONVIF S / G / T, CGI, Milestone, RTMP, P2P
    Power supply: 12V DC / 24V AC
    Consumption: <16.7W
    Supports PoE + (802.3 at)
    Supports ePoE: full duplex transmission of more than 800 meters at 10 Mbps or 300 meters at 100 Mbps over Cat5 or coaxial cable
    Storage temperature: -40 ° C ~ + 60 ° C
    Operating conditions: -40 ° C ~ + 60 ° C, relative humidity <95%
    Degree of protection IP67
    IK10 vandal protection
    Metal and plastic housing
    Dimensions: Ø157.9 x 129.1 (Al) mm
    Weight: 1.5 kg
    3AXIS: 0 ° ~ 355 ° (PAN), 0 ° ~ 80 ° (TILT), 0 ° ~ 355 ° (Rotation)
    Does not include power supply
