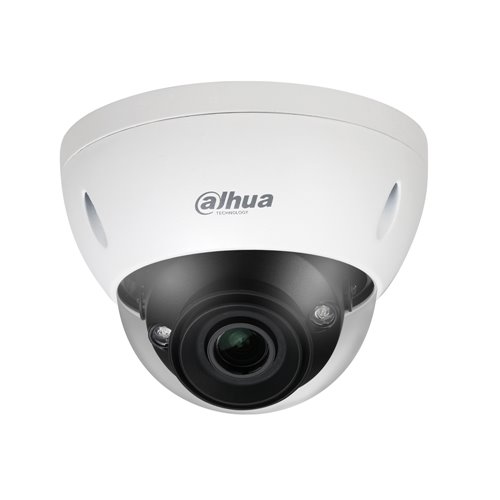

IPC-HDBW5541E-ZE - Dahua IP dome AI Series with 40 m S…

SKU: IPC-HDBW5541E-ZE

incl. VAT€539,66

Price incl. VAT: €539,66

Ex. VAT: €431,72

Total discount:

VAT: €107,93

Dahua IP dome AI Series with 40 m Smart IR, vandal resistant for outdoor. CMOS 1 / 2.7 ""of 5MP. Triple Stream H.265 + / H.265 / H.264 + / H.264 / MJPEG format. Resolution up to 5MP at 20ips. ICR filter 0.005 lux F1.6. Motorized optics 2.7 ~ 12 mm (100 ° ~ 28 °). OSD, AWB, AGC, BLC, HLC, WDR 120dB, 3D-DNR, 4 ROI zones, mirror, videosensor and privacy masks. Facial capture, perimeter protection and people counting. Intelligent Detection (IVS). Bidirectional audio. 1 input / 1 alarm output. MicroSD slot Onvif, CGI, P2P. IP67, IK10. 3AXIS. 12V DC PoE ePoE.

+20 left on stock

Back to: Dahua New

Product description: IPC-HDBW5541E-ZE

Description

WizMind

AI series

Features

IPC-HDBW5541E-ZE
1/2.7" 5 MP CMOS sensor
H.265 and H.264 encoding with triple stream
Resolution 5MP (2592x1944) at 20 fps, 1080P (1920x1080) at 50 fps
WDR 120dB, day / night with ICR filter, 3D-DNR, AWB, AGC, BLC
Multiple remote monitoring via web browser, CMS (DSS / PSS) and DMSS
2.7 ~ 13.5 mm motorized optics
Infrared lighting up to 40 meters
Alarm: 1 input / 1 output
Audio: 1 input / 1 output
MicroSD slot
Degree of protection IP67
IK10 Vandal Resistant
EPoE support

Specs

IPC-HDBW5541E-ZE
1 / 2.7 ”5 megapixel CMOS sensor
Compression formats: H.265 + / H.265 / H.264 + / H.264 / MJPEG
Digital resolution: 5MP (2592x1944), 4MP (2688x1520), 4MP (2560x1440), 3MP (2304x1296), 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), D1 (704x576), VGA (640x480), CIF (352x288)
Stream 1: 5MP (1 ~ 20 ips), 4MP (1 ~ 25 ips), 1080P (1 ~ 50 ips)
Stream 2: D1 (1 ~ 20 ips), D1 (1 ~ 50 ips)
Stream 3: 1080P (1 ~ 17 ips)
Day / night mode with removable mechanical filter
Smart IR: 3 leds, 40 meters
0.005 lux F1.6
2.7 ~ 13.5 mm motorized optics
Viewing angle: 100 ° ~ 28 ° (H), 72 ° ~ 21 ° (V)
White balance: Automatic, Natural, Streetlight, Outdoor, Manual
Automatic and manual gain control
Backlight Compensation: BLC, HLC
WDR 120dB
3D-DNR digital noise reduction
4 ROI zones
Video sensor with 4 rectangular zones
4 rectangular zone privacy mask
Defog
Mirror mode
Artificial intelligence: Facial capture, facial attributes, perimeter protection, people counting
Intelligent Detection (IVS): Changes in the scene, abandoned / lost objects
1 input / 1 audio output
1 input / 1 alarm output
MicroSD card slot up to 256GB (not included)
Network interface: RJ45 (10/100 Base-T)
Network protocols: HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, IPv4 / v6, SNMP, QoS, UPnP, NTP, ICMP, HTTPS, IGMP, 802.1x
Compatible with ONVIF (Profile S / G), CGI, Milestone, P2P
Unicast / Multicast streaming method
Up to 20 users
Remote viewing through IE, Chrome, Firefox and Safari browsers
Smart PSS, DSS, P2P management software
Compatible with IOS and Android mobile devices
Power supply: 12V DC (± 30%)
Consumption: <12.4W
Supports PoE (802.3 af, Class 0)
Supports ePoE: full duplex transmission of more than 800 meters at 10 Mbps or 300 meters at 100 Mbps through Cat5 or coaxial cable
Degree of protection IP67
IK10 vandal protection
Storage temperature of -30 ° C ~ + 60 ° C
Operating temperature of -30 ° C ~ + 60 ° C
Relative humidity: 10% ~ 95%
Metal housing
Dimensions: Ø159 x 117.9 (H) mm
Weight: 950 g
3AXIS: 0 ° ~ 355 ° (PAN), 0 ° ~ 65 ° (TILT), 0 ° ~ 355 ° (Rotation)
Does not include power supply
