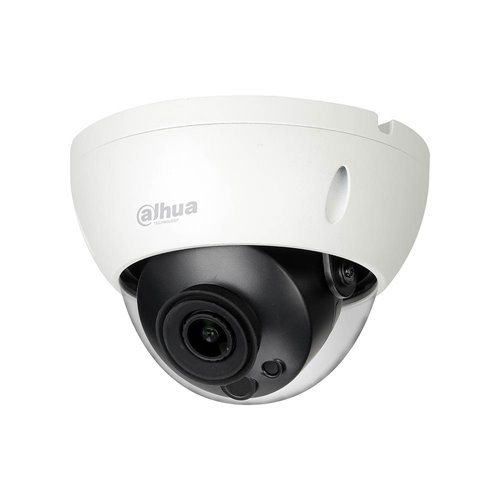

IPC-HDBW5442R-ASE-NI - Dahua IP vandal dome AI Series Star…

Features

• IPC-HDBW5442R-ASE-NI
• 1/1,8” CMOS sensor, 4MP
• H.265 and H.264 with triple stream
• 4MP (2688x1520) at 25 fps, 1080P (1920x1080) at 50 fps
• WDR 140dB, day/night with ICR filter, 3D-DNR, AWB, AGC, BLC
• Multiple remote monitoring via web browser, CMS (DSS/PSS) and DMSS
• 3,6 mm lens
• 24 hour color mode
• Alarm: 1 in / 1 out
• Audio: 1 in / 1 out
• MicroSD slot
• IP67
• IK10
• ePoE supported

Specs

• IPC-HDBW5442R-ASE-NI
• 1/1,8” CMOS sensor, 4MP
• H.265 / H.264 / MJPEG
• Digital resolution: 4MP (2688x1520), 4MP (2560x1440), 3MP (2304x1296), 1080P (1920x1080), 1,3MP (1280x960), 720P (1280x720), D1 (704x576), VGA (640x480), CIF (352x288)
• Stream 1: 4MP (1~25/30 fps), 1080P (1~50/60 fps)
• Stream 2: D1 (1~50/60 fps)
• Stream 3: 1080P (1~16 fps)
• Day/night mode with electronic filter
• 0,001 lux F1.0
• 3,6 mm lens
• Viewing angle: 93°(H), 50°(V)
• White balance: Auto, Natural, Light, Outdoor, Manual
• Auto and manual gain control
• Backlight compensation: BLC, HLC
• WDR 140dB
• 3D-DNR
• 4x ROI
• Motion detection of 4 rectangular zones
• Privacy mask 4 rectangular zones
• Defog
• Mirror mode
• AI:
  • IPC-HDBW5442R-ASE-NI
  • Face detection: Supports facial image capture
  • Perimeter protection: Tripwire; intrusion (Recognition of vehicle and people); fast moving; loitering detection; parking detection and people gathering
  • People counter: Support Line crossing/Region/Queueing people counting; Support 4 accesses independent detection, 4 areas independent detection
• IVS: abandoned/lost objects, Object Abandoned/Missing, heat map
• Audio: 1 in / 1 out
• Alarm: 1 in / 1 out
• MicroSD card slot up to 256GB (not included)
• Network interface: RJ45 (10/100 Base-T)
• Network protocols: IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, 802.1x, SNMP
• Compatible with ONVIF (Profile S/G/T), CGI, Milestone, P2P
• Unicast and Multicast streaming method
• Up to 20 users
• Remote display via web browser IE8+, Chrome, Firefox, Safari12+
• Software management Smart PSS, DSS, P2P
• Compatible with IOS and Android
• Power supply: 12V DC
• Consumption: <4,4W
• PoE supported (802.3 af, Class 0)
• ePoE supproted: Full duplex transmission of more than 800 meters at 10 Mbps or 300 meters at 100 Mbps through Cat5 or coaxial cable
• IP67
• IK10
• Storage temperature: -30°C ~ +60°C
• Working temperature: -30°C ~ +60°C
• RH: <95%
• Dimensions: Ø122 (W) x 88,9 (H) mm
• Weight: 460 g
• 3AXIS: 0°~355°(PAN), 0°~75°(TILT), 0°~355°(Rotation)
• Power supply is not included
