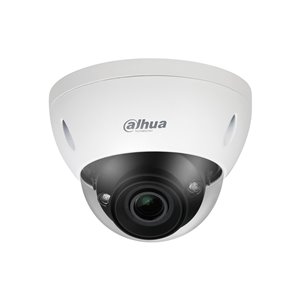

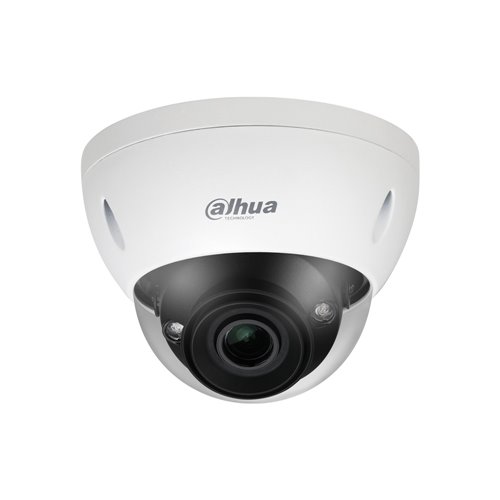

IPC-HDBW5442E-ZE - Dahua WizMind IP fixed dome with 40…

SKU: IPC-HDBW5442E-ZE

incl. VAT€480,62

Price incl. VAT: €480,62

Ex. VAT: €384,50

Total discount:

VAT: €96,12

Dahua WizMind IP fixed dome with 40m anti-vandal Smart IR for outdoor. 1 / 1.8 ""CMOS of 4MP. 3 streams. Smart H.265 +, Smart H.264 +, H.265, H.264, MJPEG format. Resolution up to 4MP at 25ips. ICR filter. 0.003 lux F1.8. 2.7 ~ 12mm (114 ° ~ 47 °) motorized lens. OSD, AWB, AGC, BLC, HLC, WDR 140dB, 3D-DNR, EIS, 4 ROI zones, Defog, mirror, video sensor and privacy masks. Face detection, perimeter protection, people counting. Intelligent detection (IVS). Heat map. 1 audio input / 1 output. 1 alarm input / 1 output. MicroSD slot. Onvif, CGI, P2P. IP67, IK10. 3AXIS. 12V DC. PoE. ePoE

Sold out / Not on stock

Back to: Dahua New

Product description: IPC-HDBW5442E-ZE

Description

WizMind

Specifications

    Image Sensor 1 / 1.8 "4 Megapixel CMOS
    Resolution: 4MP (2688x1520), 4MP (2560x1440), 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), D1 (704x576), VGA (640x480), CIF (352x288)
    Video compression Smart H.265 +, Smart H.264 +, H.265, H.264 and MJPEG
    Stream 1: 4MP (1 ~ 25 ips), 1080P (1 ~ 50 ips)
    Stream 2: D1 (1 ~ 50 ips)
    Stream 3: 1080P (1 ~ 16 ips)
    Day / night mode with removable mechanical filter (ICR)
    0.003 lux F1.8
    Smart IR: 3 LEDs, up to 40 meters
    2.7 ~ 12mm motorized lens
    Viewing angle: 114 ° ~ 47 ° (H), 62 ° ~ 26 ° (V)
    Imaging Modes: BLC, HLC, WDR 140dB, 3D-DNR, Image Stabilizer (EIS), Defog, Mirror
    White balance with 5 modes
    Automatic and manual gain control
    Supports 4-zone video sensor, 4 regions of interest (ROI) and 4-zone privacy mask
    Intelligent Video Detection (IVS): Abandoned / Lost Object Detection
    Heat map
    Perimeter protection with line crossing detection, intrusion detection, fast motion detection (all three modes support person / vehicle classification), loitering detection, people gathering detection and parking detection
    Face detection with three capture methods
    People count: Count of entry / exit of people and the number of people who pass; display and generate annual / monthly / weekly / daily reports; Supports counting people in an area and setting 4 rules
    1 audio input / 1 output
    1 alarm input / 1 output
    MicroSD card slot up to 256GB (card not included)
    Network interface: RJ45 (10/100 Base-T)
    Network protocols: IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, 802.1x, SNMP
    Remote viewing with browsers (IE8, Chrome, Firefox and Safari 12) and IOS and Android smartphones
    Smart PSS, DSS and DMSS management software
    Interoperability: ONVIF S / G / T, CGI, Milestone, P2P
    Power supply: 12V DC (± 30%), 24V AC (± 30%)
    Consumption: <12.4W
    Supports PoE (802.3 af)
    Supports ePoE: full duplex transmission of more than 800 meters at 10 Mbps or 300 meters at 100 Mbps over Cat5 or coaxial cable
    Storage temperature: -40 ° C ~ + 60 ° C
    Operating conditions: -30 ° C ~ + 60 ° C, relative humidity <95%
    Degree of protection IP67
    IK10 vandal protection
    Metal housing
    Dimensions: Ø159 x 117.9 (Al) mm
    Weight: 950g
    3AXIS: 0 ° ~ 355 ° (PAN), 0 ° ~ 65 ° (TILT), 0 ° ~ 355 ° (Rotation)
    Does not include power supply
