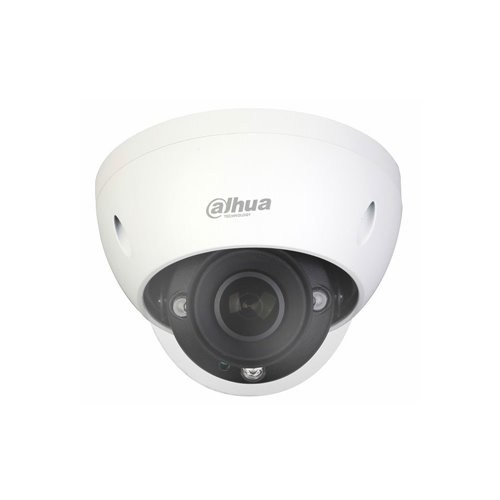

IPC-HDBW5331E - Fixed IP dome with Smart IR 15 m St…

Features

• IPC-HDBW5331E
• 1 / 2.8 ”STARVIS ™ 3-megapixel CMOS sensor
• Triple stream and H.265 + / H.265 / H.264 + / H.264 encoding
• Resolution 3MP (2048x1536) up to 25 ips
• Supports intelligent detection
• WDR 120 dB, day / night with ICR filter, 3D-DNR, AWB, AGC, BLC
• Multiple remote monitoring via web browser, CMS (DSS / PSS) and DMSS
• 1.85 mm fixed optics
• LDC lens distortion correction function
• Infrared lighting up to 15 meters
• 1 input / 1 audio output
• 1 input / 1 alarm input
• Degree of protection IP67
• IK10 Vandal Resistant
• MicroSD slot, PoE


Specifications

• IPC-HDBW5331E
• 1 / 2.8 ”STARVIS ™ 3-megapixel CMOS sensor
• Compression formats: H.265 + / H.265 / H.264 + / H.264 / MJPEG
• Digital resolution: 3MP (2048x1536), 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), D1 (704x576), CIF (352x288)
• Stream 1: 3MP (1 ~ 25 ips)
• Stream 2: D1 (1 ~ 25 ips)
• Stream 3: 1080P (1 ~ 25 ips)
• Day / night mode with removable mechanical filter
• Smart IR: 3 leds array, 15 meters
• 0.006 lux F2.0 (color, 1 / 3s, 30IRE), 0.03 lux F2.0 (color, 1 / 30s, 30IRE), 0 lux F2.0 (IR On)
• 1.85 mm fixed optics
• Corrective lens distortion LDC function
• Viewing angle with activated LDC: 151 ° (H), 114 ° (V)
• Viewing angle with LDC off: 166 ° (H), 121 ° (V)
• 16X digital zoom
• White balance: Automatic, Natural, Streetlight, Outdoor, Manual
• Automatic and manual gain control
• Backlight Compensation: BLC, HLC
• WDR 120dB
• 3D-DNR digital noise reduction
• 4 ROI zones
• Video sensor with 4 rectangular zones
• 4 rectangular zone privacy mask
• Mirror mode
• Intelligent Detection (IVS): Line crossing detection, intrusion detection, abandoned / lost object detection
• Facial detection
• Video interface (for settings only)
• 1 input / 1 audio output
• 1 alarm input (5V DC / 5 mA)
• 1 alarm output (12V DC / 0.3A)
• Network interface: RJ45 (10/100 Base-T)
• Network protocols: HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4 /
• v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP , SNMP
• Compatible with ONVIF, PSIA, CGI
• Unicast / Multicast streaming method
• Up to 10/20 users
• Remote viewing through IE, Chrome, Firefox and Safari browsers
• Smart PSS, DSS, Easy4ip management software
• Compatible with IOS and Android mobile devices
• Slot for microSD cards up to 128GB (card not included)
• Power: 12V DC, 24V AC
• Consumption: <9W
• Supports PoE (802.3 af, Class0)
• Degree of protection IP67
• IK10 vandal protection
• Storage temperature of -30 ° C ~ + 60 ° C
• Operating temperature of -30 ° C ~ + 60 ° C
• Humidity: <95%
• Metal housing
• Dimensions: Ø159.1 x 117.9 mm
• Weight: 1.15 kg
• 3AXIS: 0 ° ~ 355 ° (PAN), 0 ° ~ 65 ° (TILT), 0 ° ~ 355 ° (Rotation)
• Power supply is not included
