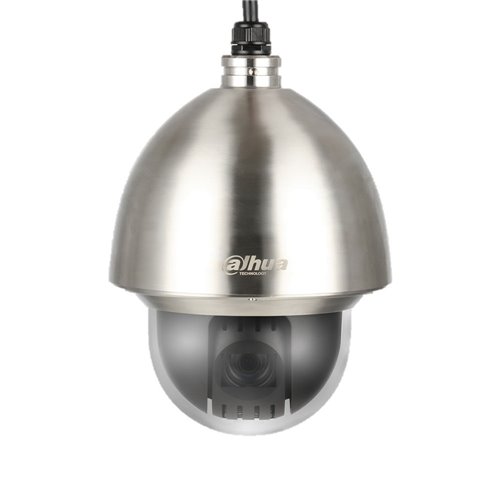

1/2,8” Sony® Starvis™ CMOS, 2MP - SD60230U-HNI-SL

- 1/2,8” Sony® Starvis™ CMOS, 2MP
- Digital resolution: 1080P (1920x1080), 1,3MP (1280x960), 720P (1280x720) D1 (704x576), CIF (352×288)
- Main stream: 1080P (1~50 fps), 1,3MP, 720P(1~25 fps)
- Sub stream 1: D1, CIF (1~25 fps)
- Sub stream 2: 1080P, 1,3MP, 720P (1~25 fps)
- Day/night mode with removable mechanical filter
- Minimum illumination: 0,005 lux F1.6 color / 0,0005 lux F1.6B/W
-Video output
- 30X optical zoom: 4,5~ 135 mm
- Viewing angleH: 67,8°~2,4°
- 16X digital zoom
- DORI distance according to EN 62676-4:
• Detection: 1862m
• Observation: 744m
• Recognition: 372m
• ID: 186m
- White balance:Auto, ATW, indoor, outdoor, manual
- Gain control: auto/manual
- Backlight compensation(BLC, HLC)
- Digital WDR
- 2D and 3D noise reduction
- Defog, EIS
-Motion detection
- 24privacy mask
- Autotracking
- IVS: Tripwire, intrusion, abandoned/lost objects, facial detection
- Horizontal positioner: 0° ~ 360° continuous
- Vertical positioner: 0° ~ 90°, autoflip 180°
- Speed: 0,1° ~ 300°/sec. (H), 0,1° ~ 200°/sec. (V)
- Preset speed: 600°/sec. (H), 500°/sec. (V)
- 300 presets
- 5 patterns, 8 rounds, Pan, Autoscan
- Protocol: DH-SD, Pelco-P/D (automatic recognition)
- 1x RS485
- Audio: 1 in / 1out
- Alarm: 7 in / 2 out
- Network interface: RJ45 (10/100 Base-T)
- Network protocols: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
- Compatible with ONVIF, PSIA, CGI
- Up to 20users
- MicroSD slot up to 128GB (card is not included)
- Power supply: 24V AC /3A (13W, 20W heater ON)
- PoE+ (802.3at)
- Working temperature:-40°C ~ +70°C
- RH: <90%
- IP68
- IK10
- anti corrosion NEMA 4X
- Internal heater incorporated
- Stainless steel case 316L
- Dimensions:Ø222 x 292mm
- Weight: 5,9 kg
- Wall mount and power supply included
