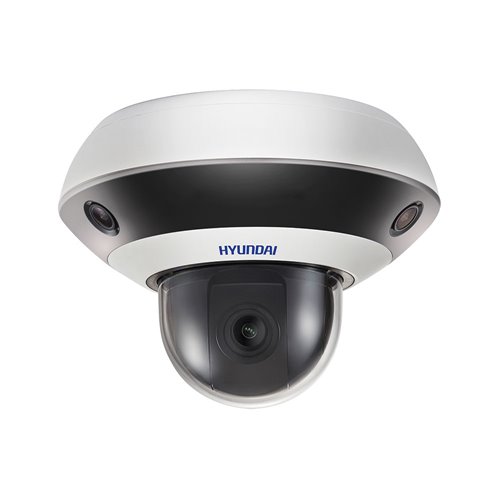

PTZ dome with 4 camera combination (3 fixed +1 PTZ) - HYU-484

Description

Based on three fix cameras (panoramic) integrated in one Speed Dome housing to cover 360º and offering 24/7 surveillance in indoor environments.

The 3 fix cameras that delivers a total global view of the scene are 1/2.8” progressive Scan CMOS 1080P at real time (130º horizontal view per camera). Sensor provides perfect images under low light conditions (0.01Lux) and also includes Smart IR LEDs to illuminate till 20m under 0 Lux (total darkness).

The PTZ camera use a 1/2.8” progressive scan CMOS and a motorized 4 times zoom lens (2.8-12mm) to capture close-up images. The PT range covers 350º (Pan) and 0-90º (Tilt) to control almost the total horizontal view of any installation under manual or automatic control.

Features
- PTZ dome with 4 camera combination (3 fixed +1 PTZ)
- 4x 1/2,8" CMOS, 2MP
- H.265/H.264/MJPEG
- Digital resolution: 1080P (1920x1080), 720P (1280x720),VGA (640x480) CIF (352x288)
- Stream 1: 1080P, VGA, CIF (25 ips)
- Day/night mode with removable mechanical filter
- IR illumination: Ø20 meters(10 m radius)
- Minimum illumination: 0,05 lux F2.0 color / 0,01 lux F2.0 B/W / 0 lux IR On
-3x 2 mm fixed lens (128,5°x3)
- 4X optical zoom: 2,8 ~12 mm (120°~56,6°)
- Optical zoom speed: 5,4seconds
- Semi automatic / manual focus
- White balance: 7configurations
- Auto/manual gain control
- Backlight compensation (BLC, HLC)
- WDRdigital
- 3D noise reduction
-Motion detection
- 4 programmable privacy masks on each fixed camera
-8 programmable privacy masks onPTZ
- 8 ROI on main stream
- Defog
- Horizontal positioner: 0° ~ 350°
- Vertical positioner: 0° ~ 90°
- Manual speed: 0,1° ~ 30°/sec. (H), 0,1° ~ 30°/sec. (V)
- Preset speeed: 30°/sec. (H), 30°/sec. (V)
- 300 presets
-Proportional zoom
- PTZ position display
- Freeze preset
- Programming tasks: Preset, dome restart,dome adjustment
-2 way audio
- MicroSD/SDHC/SDXC up to 256GB (card is not included)
- Network interface: RJ45 (10/100M)
- Network protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour
- Compatiblewith ONVIF, ISAPI, CGI
- Compatible with DDNS
-Up to32 simultaneous users (3 user levels)
- Web browser supported: IE 8+, Chrome 30+, Safari 8.0+
- Power supply: 12V DC (máx. 24W), PoE+ (802.3 at)
-Working tmeperature -10°C ~ +50°C
- RH: <90%
-For indoors
- Lightning-proof (2000V), Protection against voltage spikes
- Polycarbonate plastic, ABS plastic and aluminum
- Dimensions:Ø183 x133,2 mm
- Weight: 900 g
-Stand and power supply are not included

Note:
PTZ linkage function allows to select manually a point of any of the 3 fix cameras and automatically Speed Domes moves to these coordinates. Feature managed from web browser. There is no auto-tracking funtion or IVS.
