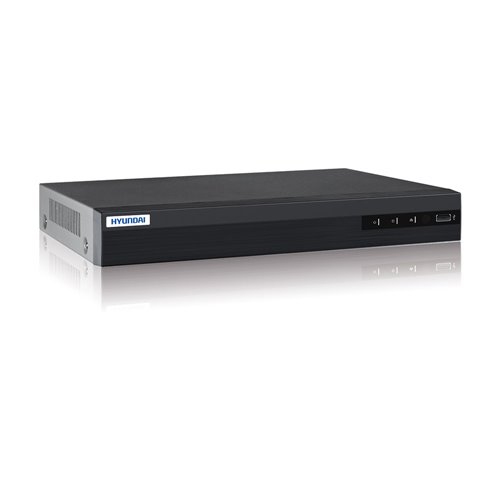

4 channel 5 in 1 ZVR, H.265+/H265/H.264+/H.264 - ZVR5104M-A-4MLITE-1TB

- 4 channel 5 in 1 ZVR, H.265+/H265/H.264+/H.264
- 5 technologies: IP, HDCVI, HDTVI, AHD and CVBS
- H.265+ improves coding efficiency up to 70% and reduces video data storage
- 4 BNC inputs (coaxitron supported):
• HDCVI: 1080P/720P (telemetry control by coaxial cable of HDCVI cameras)
• HDTVI: 4M-N/ 3MP (channel 1 / 1080P / 720P (only v3.0 cameras, not compatible with v1.0)
• AHD: 1080P/720P
• CVBS: 960H
-1 IP input up to 4MP
- VGA and HDMI output up to 1920x1080
- 2 way audio: 1 RCA in / 1RCA out
- Display resolution: 1080P, 1080N (960x1080), 720P, 960H, D1/4CIF, VGA, CIF
- Recording resolution: 4M-N, 3MP (channel 1, only TVI), 4MP (only IP), 1080P, 1080N (960x1080), 720P, 960H, D1/4CIF, VGA, CIF
- Stream 1 on4M-N/3MP mode:
• Stream at 4M-N/3MP: 4M-N, 3MP (15 fps)
- Stream 1 on1080P mode:
• Stream at 1080P: 1080P, 720P (15 fps), 960H, D1/4CIF, VGA, CIF (25/30 fps)
• Stream at 720P: 720P, 960H, D1/4CIF, VGA, CIF (25/30 fps)
- Stream 2: 960H, D1/4CIF (12 fps), CIF (25/30 fps)
- 4channel simultaneous playback
- Multi-camera inverse playback
- Local playback speed up to x256 (forward and backward)
- Special Western Digital Purple CCTV HDD of 1 TB
- Supports hard disk quota mode; allows assigning different capacities to different channels
- Graphical user interface (GUI) and one-button recording support (Wizard)
- Video quality diagnostic manual
- Search and playback by tags
- Lock and unlock log files
- Network interface: Ethernet RJ45 (10/100M) auto-adaptive
- Network protocols: TCP/IP, PPPoE, DHCP, P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS
- Compatiblewith ONVIF
- Remote access up to 128users
- Remote access via iPhone/iPad, Android
- Multi browser compatibility: Chrome, Firefox, Safari, IE
- P2P cloud, DDNS DEMES, Pushand channel zero
- Connections: 2 USB 2.0, 1 RS485 half-duplex
- Power supply: 12V DC
- Consumption: =6W
- Working tmeperature: -10°C ~ +55°C
- RH: 10~90%
- Dimensions:315 x 242 x 45 mm (desktop)
- Weight: =1,16 kg
