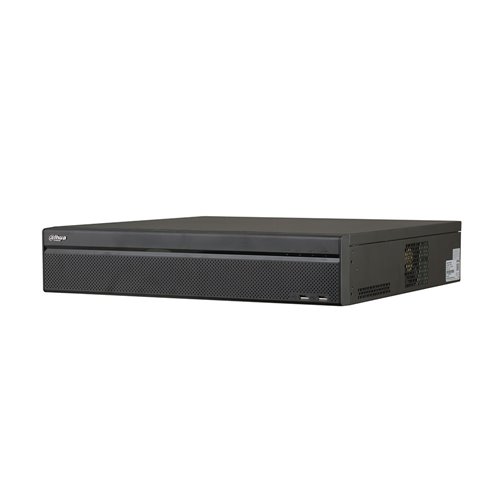

Quad-core processor - NVR5832-16P-4KS2E

Features
- Quad-core processor
- LINUX O/S
- Smart H.265+/H.265/Smart H.264+/H.264/MJPEG
-32 IP camera inputs
- 1x HDMI 4K, 1x HDMI 1080P and 2x VGA 1080P
- 1x RCA /2x RCA
- 2 way audio: channel 1
- Output division on main monitor:1, 4, 8, 9, 16, 25, 36
- Output division on secondary monitor:1, 4, 8, 9, 16
- Display resolution: 4K (3840x2160), 1080P (1920x1080), SXGA (1280x1024), 720P (1280x720), XGA (1024x768)
- Recording resolution: 12MP (4000x3000), 4K/8MP (3840x2160), 6MP (3072x2048), 5MP (2560x1920), 4MP (2560x1440), 3MP (2048x1536), 1080P (1920x1080), 1,3MP (1280x960), 720P (1280x720), etc.
- Recording speed: 320Mbps
- Bitrate per channel: 16 Kbps ~ 20 Mbps
- Motion detection: 22x18 selectable grid, video loss and masking detection
- Playback up to 16channels
- Decoding/playback capacity:2ch 12MP@20fps, 4ch 8MP@25fps, 5ch 6MP@25fps, 6ch 5MP@25fps, 8ch 4MP@20fps, 11ch 3MP@25fps, 16ch 1080P@25fps
- Supports preview / playback of thermal cameras
- Alarm: 16 in / 6 out
- Internal storage:8x SATA III, up to 10TB per port (HDD is not included)
- 1 eSATA port
- EPoE technology simplifies the network structure of long-range surveillance projects, eliminating the need for additional network repeater devices
- EoC technology allows existing analog systems to be upgraded to high definition IP using the existing coaxial cable
- IVS: Detection and analisys of objects in movement, abandoned or lost. Tripwire supported
- Heat map and counting people
- Facial detection
- POS
- Features multiple fisheye dewarping modes to make video viewing easy, either live or during playback
- Automatic recognition of license plates for the management of inputs / outputs
- Recognition of license plates, import / export of black / white lists, search results of recorded video
- ANR technology: In case of network failure the images are registered in the SD card of the IP camera, which are transferred to the NVR once the network is restored
- VQD
- 1x RJ45 (10/100/1000M)
-16 PoE+ports (IEEE802.3at/af), of which up to 8 support ePoE and EoC
- Network protocols: HTTP, HTTPs, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP filter, PPPoE, DDNS, FTP, alarm server, IP search (IP Dahua, DVR, NVS, etc.), Easy4IP
-ONVIFVersion2.4
- Remote access up to 128 users
- Connections:2 USB 2.0,2 USB 3.0, 1 RS485, 1 RS232
- Local network and internet server
- Remote control via Joystick connected byRS485 and/or TCP/IP
- Independent motion detection configuration by camera
- Compatible with 3D positioning function (PTZ compatible domes)
- Software and hardware watchdog
- Watermark
- Limit user access to cameras on local/remote mode
- Masking areas, alarm by video loss and camera blank
- Multilanguage on screen menu
- Display, configuration and remote control by TCP/IP with client program and web browser (IE, Firefox and Chrome)
- Email sended with attached picture
- Programmed FTP or alarm sending
- Possibility of sending alarm, and being connected to video surveillance receiver software
- Display on iPhone, iPad and Android
- Posibilidad de IP fija o dinámica mediante servicio Dyndns, NoIP, DDNS Evolution, etc.
- Power supply: 100V ~ 240V AC,50 ~ 60 Hz
- NVR consumption: <17,5W (without discs)
- PoE consumption:25,5W per port with a limit of 150W(total)
- Working temperature: -10°C ~ +55°C
- RH: 0~90%
- Dimensions:440 x451,5 x95mm (2U)
- Weight: 9,5 kg (withoutHDD)
