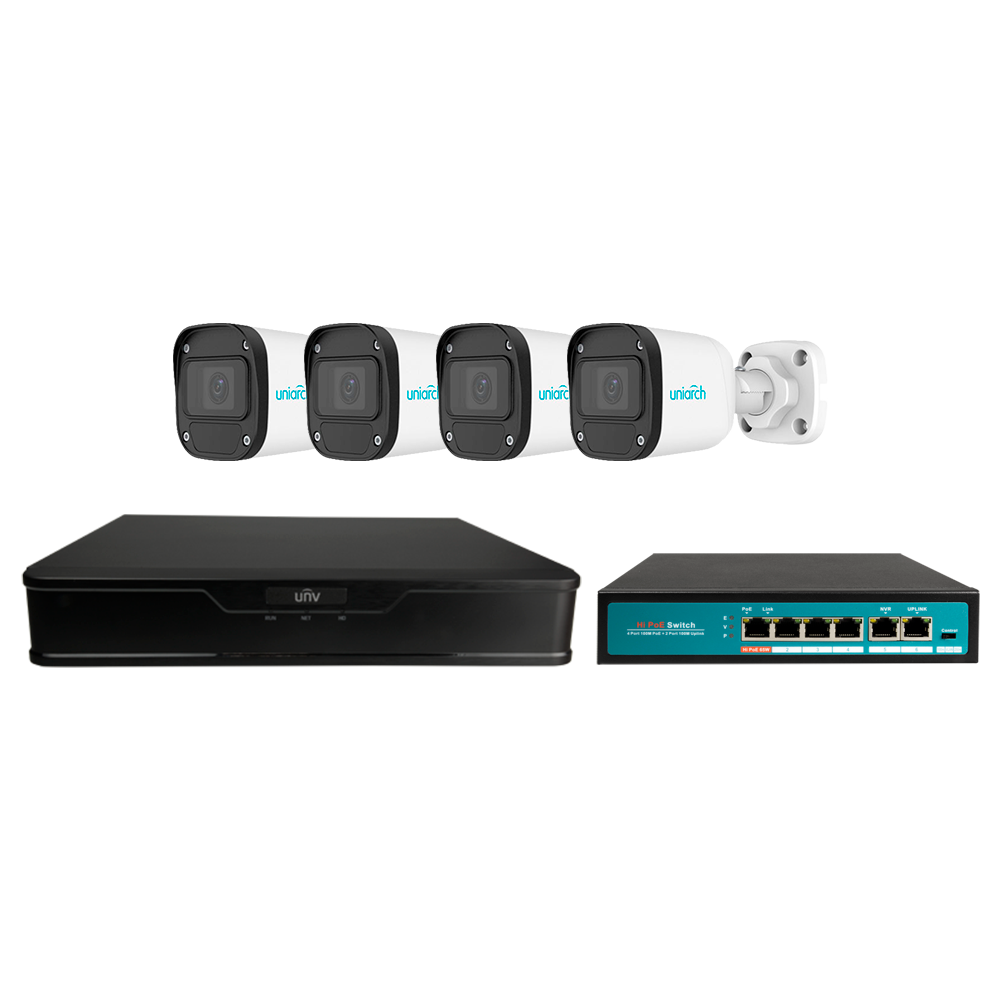

Uniview Video Surveillance Kit - UV-KIT101-B44XPOE

SKU: UV-KIT101-B44XPOE
incl. VAT€332,48
Price incl. VAT: €332,48
Ex. VAT: €265,98
Total discount:
VAT: €66,50
  • SKU: UV-KIT101-B44XPOE
  • Uniview Video Surveillance Kit
  • XVR 4CH (up to 6 IP)
  • 4 Bullet cameras IP67
  • Hi-PoE Switch
  • Space for 1 HDD
  • WEB, CMS, Smartphone and NVR interface
Sold out / Not on stock
Product description: UV-KIT101-B44XPOE
  • UV-KIT101-B44XPOE
  • Uniarch
  • Video surveillance kit
  • 4 Bullet IP Cameras 2 Mpx
  • IR Range 30 m
  • Outdoor-safe cameras IP67
  • XVR Recorder 4CH (up to 6 IP)
  • Recording resolution 4K
  • HDTVI, HDCVI, AHD, CVBS and IP
  • HDMI Full HD, VGA and CVBS video output
  • RS485 Communication
  • Audio
  • Compression H.265/H.264
  • Hi-PoE Switch 65W
  • Space for 1 HDD up to 10 TB

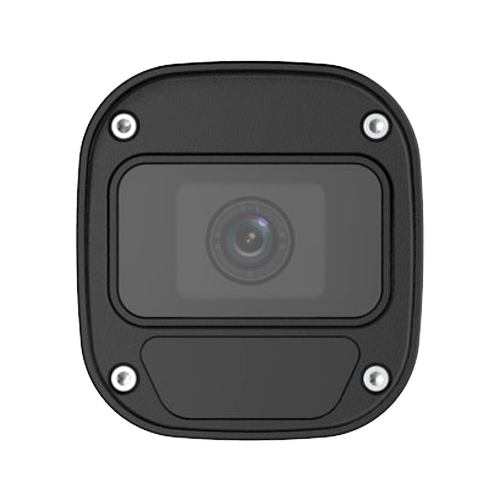

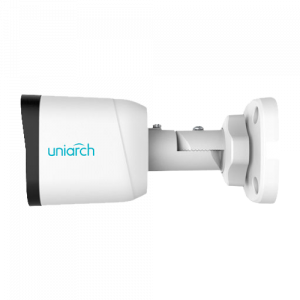

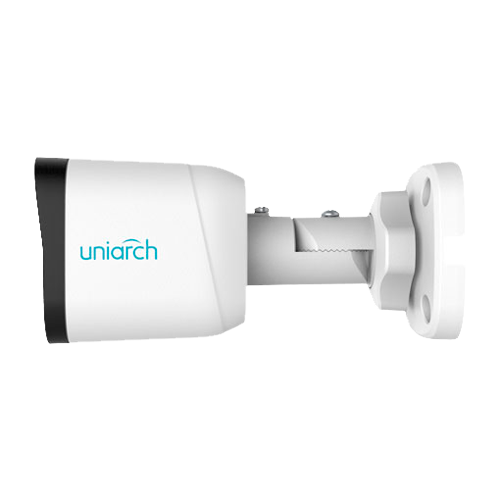

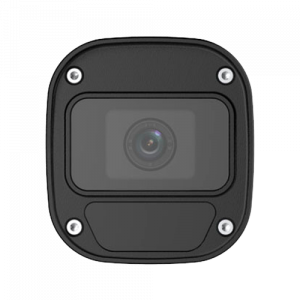

IP cameras

SKU UV-KIT101-B44XPOE
Model UV-IPC-B122-PF28
Image sensor 1/2.9” 2 Megapixel Progressive Scan CMOS
Resolution 2 Megapixel (1920x1080)
Transfer Rate Max 25 FPS
Compression Ultra H.265 / H.265 / H.264 / MJPEG
Lens 2.8 mm @ F2.1
Minimum illumination Colour: 0.02 Lux / 0 Lux B/W
Infrared range 30 m
Image improvements 2D/3D-DNR, DWDR, HLC, BLC, OSD, PM, ROI, MD
Internal memory MicroSD Card, Max 256 GB (not included)
Network interface Ethernet 10/100 BaseT
Protection Suitable for exterior IP67
Remote access Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive)
Power DC 12 V / 3.5 W, PoE IEEE802.3af
Operating temperature -30º C ~ 60º C
Dimensions / Weight 142.1 (H) x 62.4 (W) x 65.2 (D) mm / 190 g

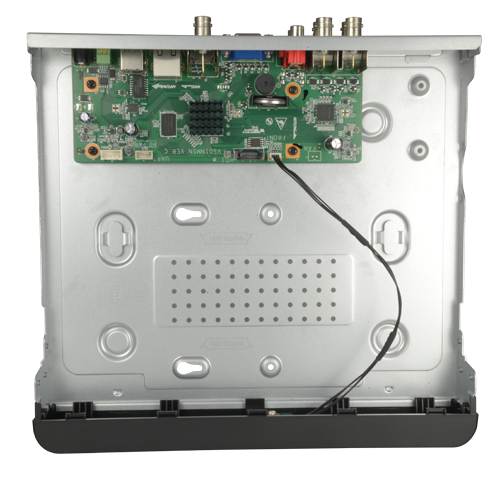

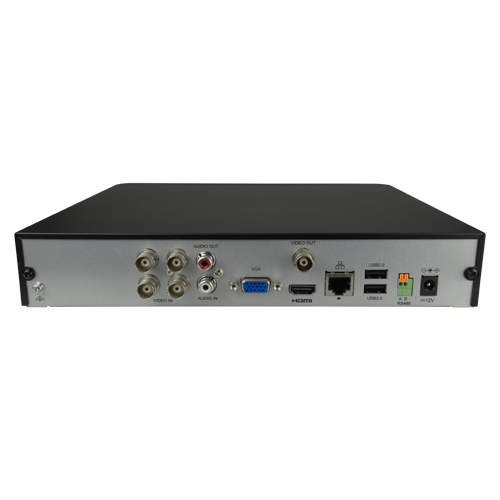

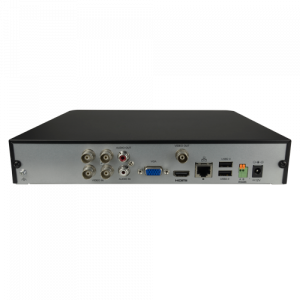

XVR

Model UV-NVR301-04Q
Analog video inputs
4 Channels BNC (HDTVI / HDCVI / AHD / CVBS)
IP video inputs
Up to 6 IP Channels. All analog channels are replaceable + 2 extra IP
Bandwidth
40 Mbps downstream / 40 Mbps upstream
Video outputs 1 HDMI Full HD, 1 VGA and 1 BNC (CVBS)
Audio RCA | 1 Ingoing / 1 Exit
Video/audio compression format
H.265/H.264 | G.711u
Display resolution 1920x1080, 1280x1024, 1280x720, 1024x768
Maximum recording resolution 8 Mpx
Coding
Up to 8 Mpx Lite (Supports cameras from 8 Mpx)
Decoding
6 channels simultaneously
Recording method Manual, programmed, motion detection
Internal memory 1 SATA HDD 3.5" of up to 10 TB (not included)
Communication 2 x USB (Mouse and backup) / RJ45 (Ethernet) / RS485
Remote access Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive)
Power DC 12V / 12W
Dimensions 46 (H) x 260 (W) x 240 (D) mm / 1,12 Kg

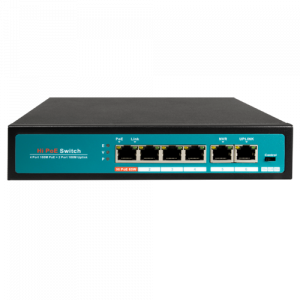

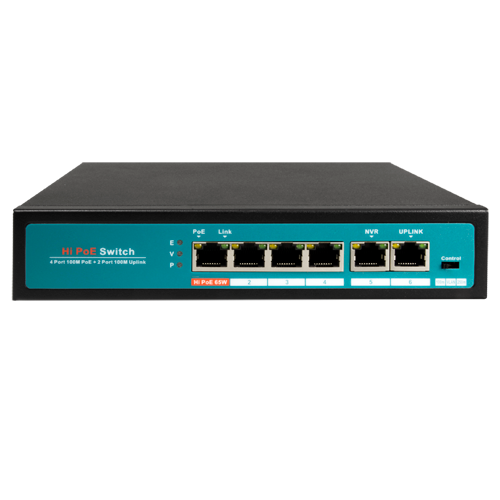

PoE Switch

Model SW0604-60-HIPOE
Interface 4 PoE ports RJ45 10/100 + 2 Uplink
Port speed RJ45 4 x 10/100 - 1 x 10/100 Mbps
Power supply Up to 65W (Hi-POE) in port 1 and up to 30W in ports 2 to 4 (65 W in total for the switch)
PoE features Hi-PoE / IEEE 802.3at PoE+ / IEEE 802.3af PoE
Transmission distance CCTV mode up to 250m at 10Mbps
Smart PoE PoE Watchdog - Progressive protected start
Power AC 220 V
Operating temperature -40° C - 55° C
Dimensions 200 (D) x 40 (H) x 155 (W) mm
