- SKU: XS-IPDM141-1EI

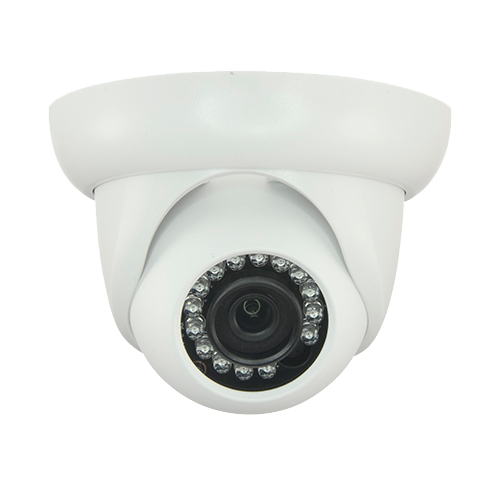

- 720P IP Camera
- 1/4” 1.0 Megapixel CMOS
- H.264 / MJPEG Compression
- 3.6 mm Lens
- 15 LED's Range 20 m
- WEB, DSS/PSS, Smartphone and NVR

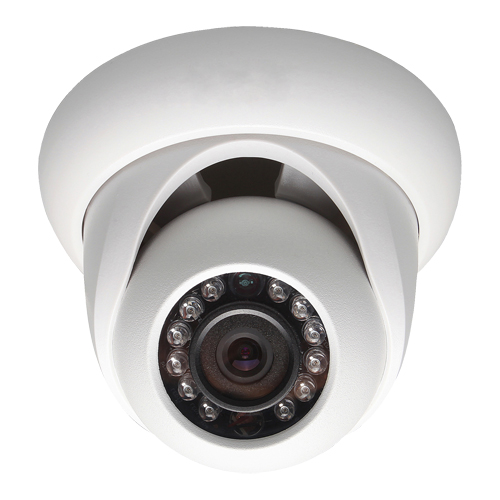

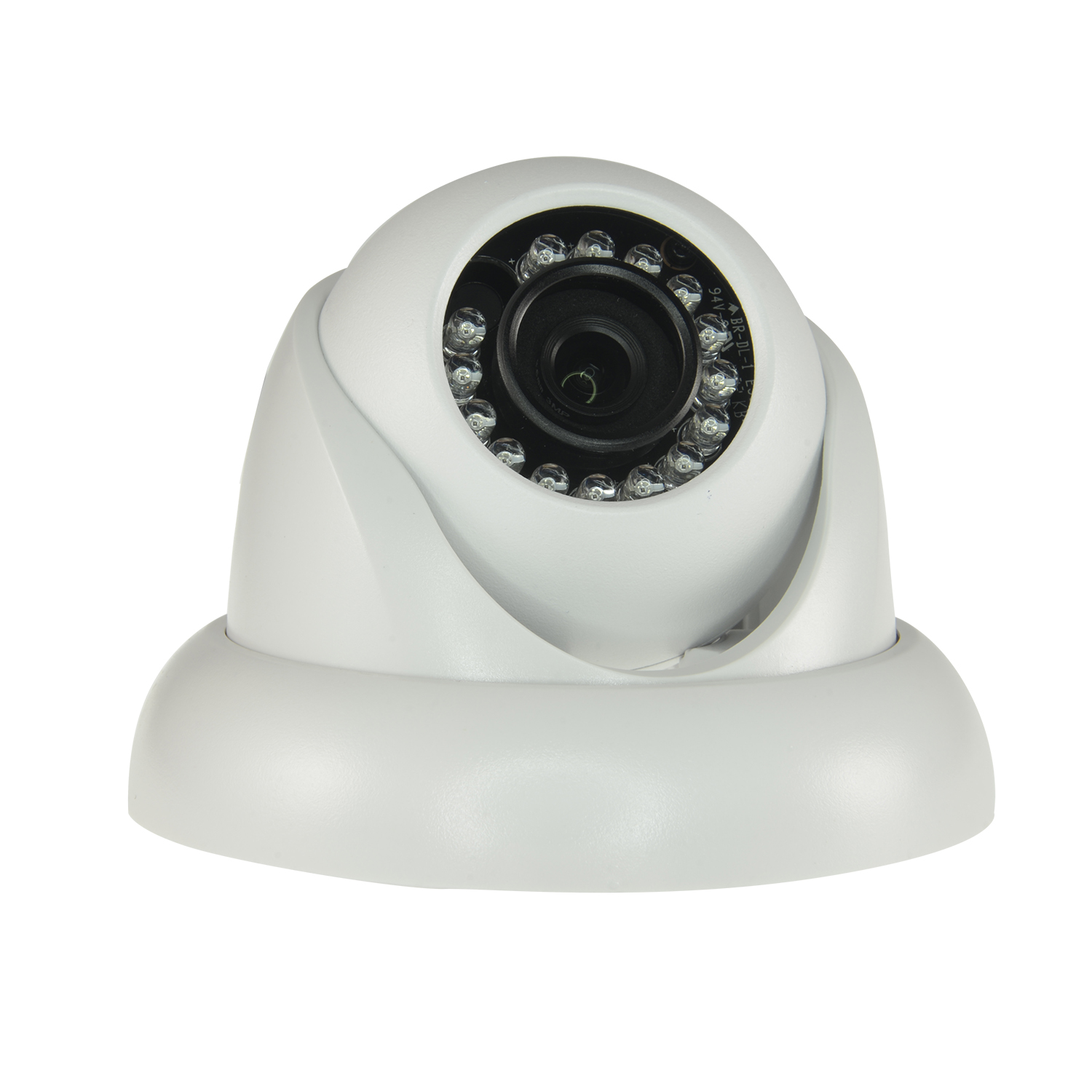

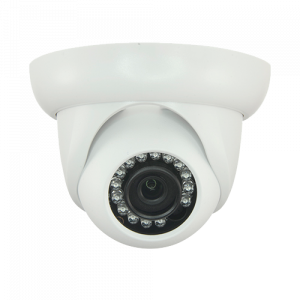

X-SECURITY IP camera IR dome format suitable for exterior.
It has an image sensor 1/4" 1.0 Megapixel Progressive Scan CMOS. Maximum resolution of 1.0 Megapixel (1280x720). Image compression format H.264 and MJPEG. Fixed lens of 3.6 mm, with a horizontal field of vision of 70º (wide angle). 15 IR LED's which activate automatically providing sharp images at 0 Lux (total darkness) at a maximum distance of 20m. It has automatic IR Cut filter that permits clear, real colour, daytime images.
Weatherproof, according to protocol IP66,, can be used for both interior and exterior. Supports PoE power supply, according to standard IEEE802.3af.It has network output RJ45 that allows a powerful remote access via browser (multi-platform), by DSS/PSS software or free Application for smartphone. Supports Dual Stream, which gives fast and fluent access to the Internet. It supports DDNS of different suppliers for remote access from dynamic IPs. ONVIF Compatible.
| SKU | XS-IPDM141-1EI |
| Image sensor | 1/4" 1.0 Megapixel Progressive Scan CMOS |
| Minimum illumination | 0.1 lux @F1.2, 0 lux with IR |
| Maximum resolution | 1.0 Megapixel (1280x720) |
| Main Stream rate | 720P / D1 / CIF (1 ~ 25 FPS) |
| Extra Stream rate | D1/CIF (1 ~ 25 FPS) |
| Compression | H264 / MJPEG |
| Bitrate | 56 Kbps ~ 8 Mbps |
| Lens | 3.6 mm (H:70º) |
| Infrared lighting | 0 Lux / 15 LED's (20 m) |
| Degree of protection | Weatherproof IP66 |
| Image improvements | DWDR, BLC, HLC, AWB, AGC, 2D-NR, Privacy Masking |
| Day / Night | Removable mechanical ICR filter |
| Network interface | Ethernet 10/100 BaseT |
| Internal memory | No |
| Alarms | No |
| Audio | No |
| Remote access | WEB, CMS (DSS/PSS), Smartphone and NVR interface |
| Interoperability | ONVIF |
| Power | DC 12 V / 400 mA, PoE IEEE802.3af |
| Temp. operation | -30º C ~ +60º C |

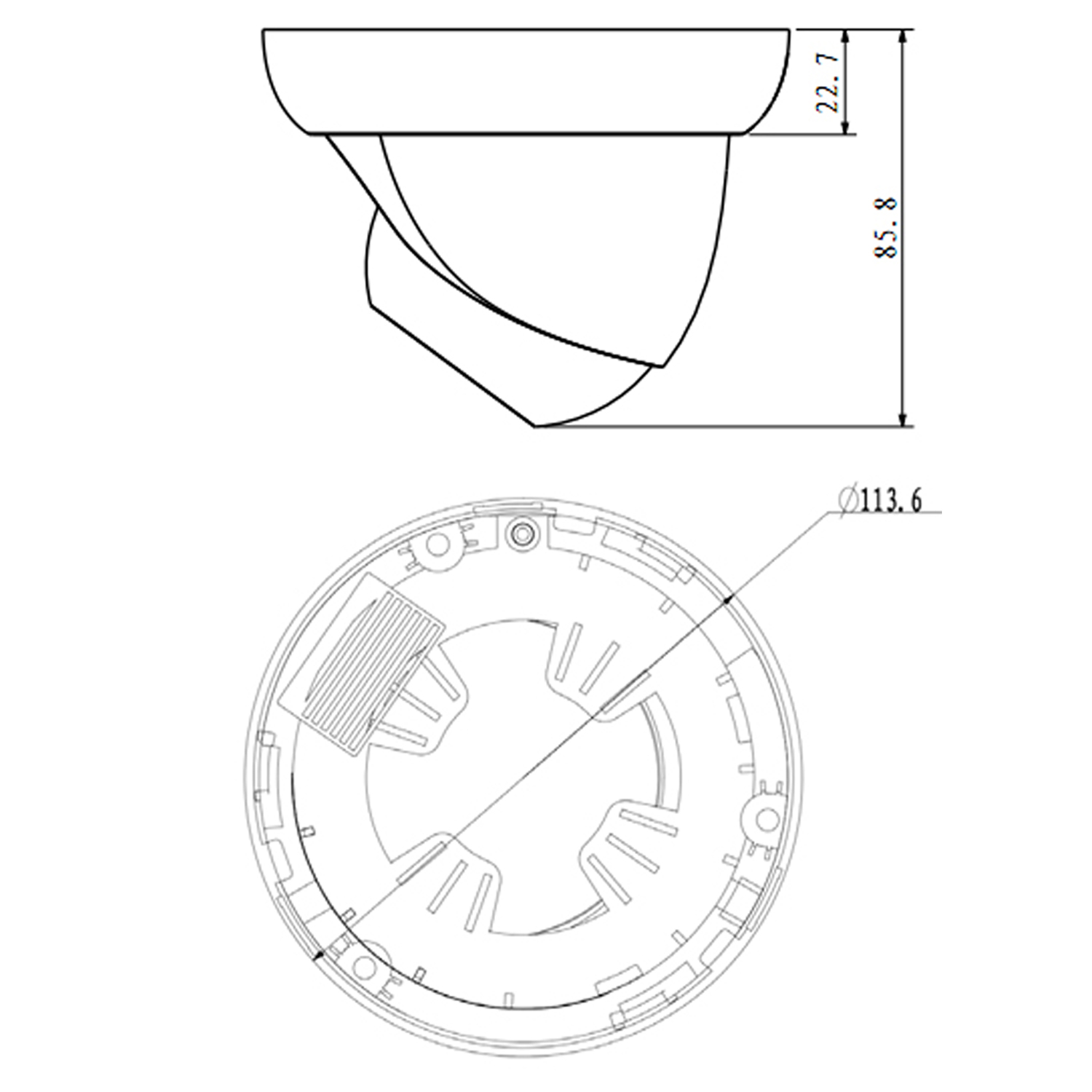

| Dimensions | 86 mm (H) x 108 (Ø) mm |
| Weight | 260 g |
