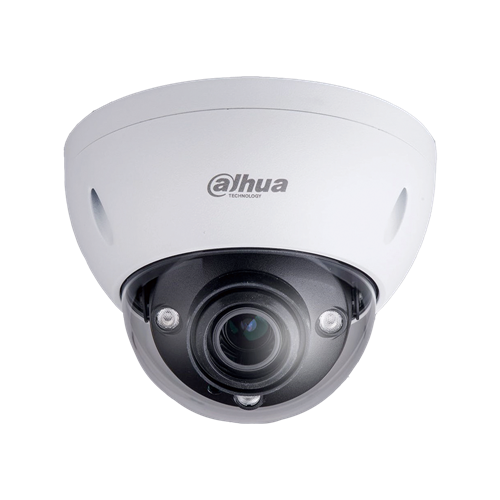

1/2,8” CMOS sensor- 2MP - IPC-HDBW8241E-Z

Features
- 1/2,8” CMOS sensor, 2MP
- H.265+ / H.265 / H.264+ / H.264 / MJPEG
- Resolución digital: 1080P (1920x1080), 1,3MP (1280x960), 720P (1280x720), D1 (704x576), VGA (640x480)
- Stream 1: 1080P (1~50 fps)
- Stream 2: D1 (1~50 fps)
- Stream 3: 1080P (1~19 fps)
- Day/night mode with removable mechanical filter
- Smart IR:3 array led,50meters
- 0,006 lux F1.6 (color, 1/3s, 30IRE), 0,05 lux F1.6 (color, 1/30s, 30IRE), 0 lux F1.6 (IR On)
- 2,7 ~ 13,5 mm motor lens
- Viewing angle: 107°~31°(H),56°~17°(V)
- Motorized focus control
- 16X digital zoom
- Auto/manual white balance
- Auto/manual gain control
- BLC, HLC,WDR 140dB, SSA
- 3D-DNR
- 4 ROI
- Motion detection: 4 rectangular zones
-Privacy mask: 4rectangular zones
- EIS, Mirror mode, Defog
- People counter: People counter by tripwire, people counter by region, marauder filter
- IVS: Tripwire detection, intrusion detection (with people and vehicle classification)
- Video interface (only for adjustment)
- Audio: 1 in / 1 out
- Alarm: 1 in (5V DC /5 mA)
- Alarm: 1 out (30V DC /1A - 50VAC /0,5A)
- 1x RS485
- Network interface: RJ45 (100/1000 Base-T)
- Network protocol: HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP,FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP,NTP, Bonjour, IEEE 802.1x, Multicast, ICMP, IGMP, SNMP, TLS
- Compatiblewith ONVIF (S/G),API
- Unicast / Multicast streaming method
- Up to 10/20users
- MicroSD card slot up to 128GB (card is not included)
- Power supply: 12V DC, 24V AC
- Consumption: <5,8W at 12V DC (16,4W with IR ON)
- PoE+ supported (802.3 at, Class4) /5,3W(14,7W with IR ON)
- IP67
- IK10
- Storage temperature: -30°C ~ +60°C
- Working temperature: -30°C ~ +60°C
- RH: <95%
-Metal case
- Dimensions: Ø159,1 x 117,9 mm
- Weight:1,06kg
- 3AXIS: 0°~355°(PAN), 0°~65°(TILT), 0°~355°(Rotation)
-Power supply is not included
