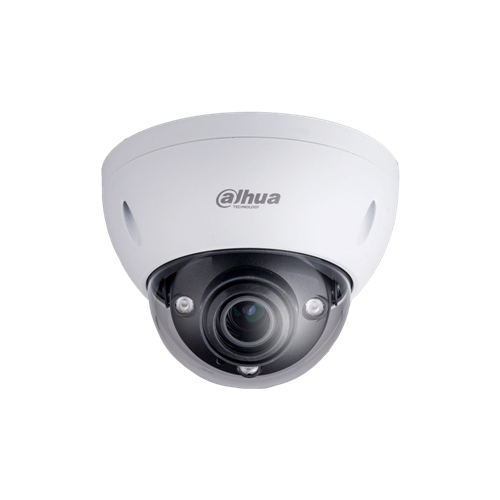

1/2,8” CMOS sensor- 2 MP - IPC-HDBW5231E-ZE-HDMI

Features
- 1/2,8” CMOS sensor, 2 MP
- H.265+ / H.265 / H.264+ / H.264 / MJPEG
- Digital resolution: 1080P (1920x1080), 1,3MP (1280x960), 720P (1280x720), D1 (704x576), CIF (352x288)
- Stream 1: 1080P (1~25 fps)
- Stream 2: D1 (1~25 fps)
- Stream 3: 1080P (1~25 fps)
- Day/night mode with removable mechanical filter
- Smart IR:3 led array,50meters
- Minimum illumination: 0,006 lux F1.6 (color, 1/3s, 30IRE), 0,05 lux F1.6 (color, 1/30s, 30IRE), 0 lux F1.6 (IR On)
- 2,7 ~ 13,5 mm motor lens
- Viewing angle: 101°~31°(H),54°~17°(V)
- 16X digital zoom
- White balance: auto, natural, light, outdoor, manual
- Auto/manual gain control
- BLC, HLC
- Real WDR 120dB
- 3D digital noise reduction
- 4 ROI zones
- Motion detection: 4rectangular zones
- Privacy mask: 4rectangular zones
-Mirror mode
- IVS: Tripwire, intrusion, abandoned/lost object
-Facial detection
-Video interface HDMI (1.4a)
- Audio: 1 in / 1 out
- Alarm: 1 in (5V CC /5 mA)
- Alarm: 1 out (12V CC /300 mA)
- Network interface: RJ45 (10/100 Base-T)
- Network protocols: HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP,NTP, Bonjour, IEEE 802.1x, Multicast, ICMP, IGMP, SNMP, TLS
- Compatible with ONVIF (S/G),API
- Unicast / Multicast streaming method
- Up to 10/20users
- MicroSD card slot up to 128GB (card is not included)
- Power: 12V DC, 24V AC
- Consumption: <4,4W
- PoE+ supported (802.3 at, Class4) /11,8W
- ePoE supported:Transmisión full duplex transmission > 800 meters at 10Mbps, or 300 meters at 100MbpsviaCat5 or coaxial cable
- 6KV Lightning-proof
- IP67
- IK10
-Storage temperature-30°C ~ +60°C
- Working temperature -30°C ~ +60°C
- RH: <95%
-Metal case
- Dimensions: Ø159,1 x 117,9 mm
- Weight: 950g
- 3AXIS: 0°~355°(PAN), 0°~65°(TILT), 0°~355°(Rotation)
-Power supply is not included
