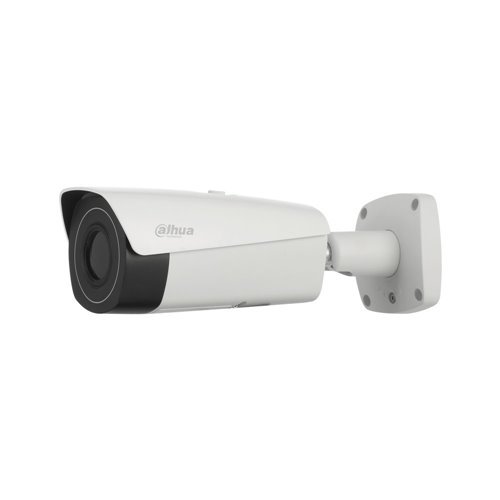

- SKU: TPC-BF5400-TC25
- Long life sensor-Uncooled VOx Microbolometer
- Effective pixels-400 x300
- Pixel size- 17 µm
- Thermal sensitivity (NETD)- 40mK @ f/1.0
- Spectral range- 7 ~14 µm
- Fo…
Features
- Long life sensor,Uncooled VOx Microbolometer
- Effective pixels:400 x300
- Pixel size: 17 µm
- Thermal sensitivity (NETD): 40mK @ f/1.0
- Spectral range: 7 ~14 µm
- Focal distance:25 mm
- Viewing angle: 15,5° x 11,6°
- Effective distance on people (1,8 m x 0,5 m): Detection (1000 m), recognition (250 m), ID (125 m)
- Effective distance on vehicles (2,3m x 2,3m): Detection (3000 m), recognition (720 m), ID (360 m)
- Temperature measurement supported: ±2°, ±2% precision
- Temperature range measurement: -40°C~+550°C low gain /-40°C~+150°Chigh gain
- Measurement modes: Point, line, area
- 19X digital zoom
- Brightness and sharpness adjustment
-Automatic gain control
- 3D-DNR
- 4 ROI
- Motion detection: 4 rectangular zones
- Privacy mask: 4rectangular zones
-Mirror mode
- 14 color palettes (Whitehot, Blackhot, Ironrow, Icefire,Fusion, Rainbow, Globow, Iconbow1,Iconbow2, etc)
- H.264/MJPEG
- Stream 1:1280x1024, 720P (25 fps)
- Stream 2:640x512,320x256 (25 fps)
- Video output: IP / Analog (HDCVI optional)
- Smart detection: Tripwire , intrusion, abandoned/lost object
- Alarm and fire detection
- G.711a, G.711Mu, AAC
- Audio: 1 in / 1 out
- Alarm: 2 in / 1 out
- RS485
- Ethernet: RJ-45 (10/100 Base-T)
- Protocols:IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
- Compatible with ONVIF Profile S/G, PSIA, CGI
- Streaming method: Unicast / Multicast
- Up to 10/20users
- Compatible with browsers
- MicroSD card slot up to 128GB (card is not included)
- Power supply: 24V AC / 12V DC / PoE
- Consumption:max 10W
-Working temperature: -40°C ~+60°C
- RH: <95%
- Lightning-proof 6KV
- IP67
-Metal case
- Dimensions: 291 x 103 x 97 mm
- Weight: 1,37 Kg
Nota: The effective distance values shown are nominal values and should be used as an estimate. Consult your sales representative to find out the recommended detection distances with our Vaelsys perimeter system.
