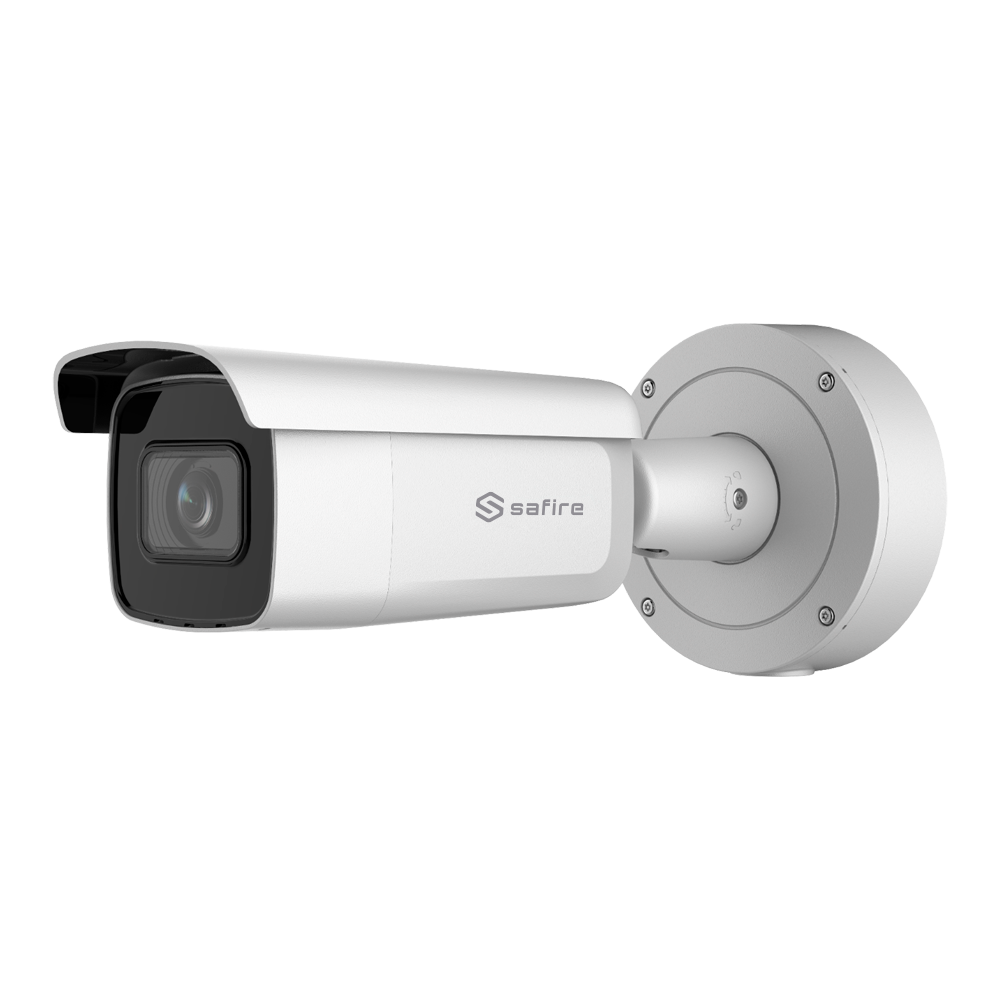

IP Camera 4 Mpx LPR - SF-IPB798ZUWH-4ULPR-WG

SKU: SF-IPB798ZUWH-4ULPR-WG

incl. VAT€676,23

Price incl. VAT: €676,23

Ex. VAT: €540,98

Total discount:

VAT: €135,25

SKU: SF-IPB798ZUWH-4ULPR-WG
IP Camera 4 Mpx LPR
1/2.7" Progressive Scan CMOS
OCR function, integrated license plate reader
2.8~12mm motorised auto-focus lens
IR LEDs Range 60 m | Wiegand Protocol
Truesense2: Improved false alarm filter

Sold out / Not on stock

Back to: Bullet Cameras

Product description: SF-IPB798ZUWH-4ULPR-WG

Description
Specification

SF-IPB798ZUWH-4ULPR-WG
Safire
IP camera with license plate recognition
1/2.7" Progressive Scan CMOS
4 Megapixel (2688x1520)
2.8~12 mm motorised varifocal autofocus lens
WDR (120dB)
0 Lux
IR Range 60 m
Number plate reading up to 40km/h
Monitoring of inputs and outputs ( (1 lane only)
Compression H.265+/H.265/H.264+/H.264
RJ-45 10/100 Mbps BaseT
RS-485
Wiegand
Alarms
Alarm when blacklisted number plate is detected
PoE IEEE802.3af
Weatherproof IP67
IR Cut
Recording and storage of license plates on SD card
WEB, CMS, Smartphone and NVR interface
ONVIF Compatible

SKU	SF-IPB798ZUWH-4ULPR-WG
Brand	SAFIRE
Image sensor	1/2.7" Progressive Scan CMOS
Maximum resolution	4 Megapixel(2688x1520)
Main Stream rate	4 Mpx / 1080p / 720p (1 ~ 50 FPS)
Extra Stream rate	D1 / CIF (1 ~ 25 FPS)
Compression	H.265+ / H265 / H.264+ / H264 / MJPEG
Bitrate	32 Kbps ~ 8 Mbps
Lens	2.8~12mm Motorised auto-focus
Minimum illumination	0 Lux / IR LEDs (60 m)
Image improvements	WDR (120 dB), BLC, 3D-NR, AWB, Privacy Masking, ROI
LPR function	Vehicle detection and number plate recognition up to 40 km/h Vehicle detection in entrances and exits (only suitable for 1 lane) Allowed and blocked list: up to 10.000 registrations Capture of vehicles without registration Supports Wiegand protocol: CARD ID 26bit, SHA-1 26bit and Hik 34 bit
Truesense 2	Motion Detection, Line Crossing, Entry / Exit area TrueSense, Face capture and People Counting cannot be active at the same time
Face Capture	YES (Compatible with Safire's Face Recognition recorders) TrueSense, Face capture and People Counting cannot be active at the same time
Day / Night	Removable mechanical ICR filter
Internal memory	MicroSD Card, max 256 GB (required to operate LPR function)
Video output	1 BNC CVBS output for test
Alarms	1 input / 1 relay (max. 24 VDC, 1 A; 24 VAC, 1 A)
Audio	No
Communication Interface	Ethernet 10/100M BaseT \| 1 RS485 1 [%VAR%] Wiegand
Remote access	Web browser, Safire Control Center Smartphone App and PC Software
Interoperability	ONVIF, PSIA, CGI
Power	DC 12 V / 1.08 A, Max. 13W / PoE IEEE802.3at Max. 15W
Degree of protection	Weatherproof IP67
Temp. operation	-30º C ~ +60º C
Dimensions	340.9 mm (D) x 105 (Ø) mm
Weight	1300 g
