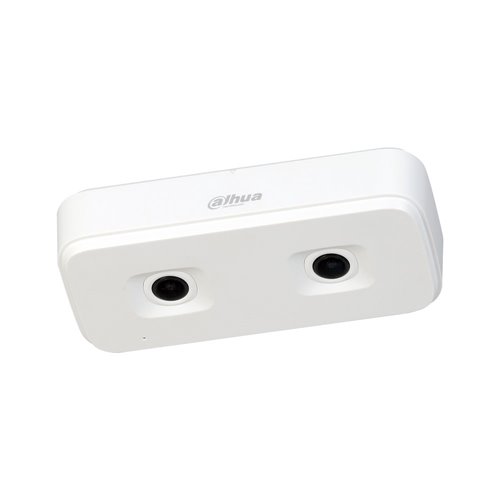

1/3” double sensor CMOS- 1,3 MP - IPC-HD4140X-3D

• People counting camera: uses dual-lens imaging technology to capture 3D depth information from within images. The camera pairs this information with deep learning algorithms to analyze and detect human bodies and track target objects in real time. The camera provides statistics for separate individuals’ entrance and exit with up to 98% counting accuracy.

Features
- 1/3” double sensor CMOS, 1,3 MP
- H.265+/H.265/H.264+/H.264/H.264H/H.264B/MJPEG
- Digital resolution: 1,3MP (1280x960), 720P (1280x720), D1 (704x576), VGA (640x480)
- Stream 1: 1,3MP (1~25 fps)
- Stream 2: D1 (1~25 fps)
- Stream 3: 720P (1~25 fps)
- Day/night mode with electronic filter
- 0,003 luxF2.2 (color, 1/3s, 30IRE),0,02 lux F2.2 (color, 1/30s, 30IRE),0,005 lux F2.2 (B/N, 1/3s, 30IRE), 0,02 F2.2 (B/W, 1/30s, 30IRE)
- 2,1 mm lens (H:109,5°, V:84,3°)
- 16X digital zoom
- Auto/manual white balance
- Auto/manual gain control
-Backlight compensation (BLC, HLC)
- Digital WDR
- 3D digital noise reduction
- 4 x ROI
- Motion detection: 4 rectangular zones
-Privacy mask: 4 rectangular zones
- People counting pattern (IA): Counting by tripwire, area, height filter, maurauder filter
- Event trigger: motion detection, image masking, scene change, network disconnection, IP conflict, unauthorised access, storage failure
- Microphone incorporated
- Alarm: 1 input(5V DC, 5 mA) /1 output (12V DC, 300 mA)
- 1x RS485
- MicroSD card slot up to 128GB (card is not included)
- Network interface: RJ45 (100/1000 Base-T)
- Network protocols: HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, Bonjour, IEEE802.1x, Multicast, ICMP, IGMP, SNMP, TLS
- Compatiblewith ONVIF (Profile S/G), API
- Unicast/Multicast streaming method
- Up to 10/20users
- Power supply: 12V DC
- Consumption: <3,6W
- PoE 802.3af, Class 0, 5,3W
- Working temperature: -10°C ~ +45°C
-Storage temperature:-10°C ~ +45°C
- RH: <95%
- IP54 (not suitable for outdoors)
- Metal case
- Dimensions:162,1 x76 x37,8 mm
- Weight: 300 g
-Power supply is not included
