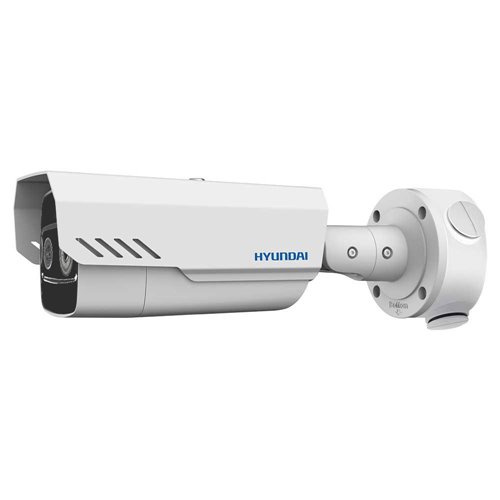

Thermal camera - HYU-556

Thermal camera
- FPA sensor (focal plane array) uncooled vanadium oxide
- Thermal resolution: 160x120
- Pixel interval:25µm
- Thermal sensibility (NETD): <50 mk (@25°C, f/1.0)
- Spectral range: 8 µm ~ 14 µm
-FOcal distance (thermal): 10 mm
-Viewing angle (thermal): 23,3° x 17,6°
- Minimum focus distance of 1 meter
- Effective distance on people: Detection (200 m), recognition (50 m), ID (25 m)
- Efeective distance on vehicles:Detection (613 m),recognition (153 m), ID (77 m)
- 15 adjustable color palettes, 3D-DNR
-Dynamic improvement of details
- VCA rules supported (intrusion, tripwire, entry/exit region), 8rules max.
-Temperature range: -20°C ~ +150°C
- Temperature accuracy ±8°C
- 3 temperature measurement rules, 21 rules (10 points, 10 regions and 1 line)
- 10 fire detection points supported

Visible camera
- Image sensor (cámara visible) CMOS 1/2,8Progressive Scan de 2 megapíxeles
- Effective pixels: 1920 x 1080
- IR illumination of 30meters
- Minimum illumination: 0,002 lux F1.5 (color) / 0,0002 lux F1.5 (B/W) / 0 lux IR On
- Focal distance (visible lens):8 mm
- Viewing angle (visible lens): 40°x 22,4°
- Removable mechanical filter
- Digital WDR
- Supports fusion of bi-spectrum images, preview of image in image and change of image

IP communication and integration
- H.264/MJPEG/H.264+ (baseline/main/high profile)
- Stream 1 (thermal camera): 160x120 (50 fps)
- Stream 2 (thermal camera): 160x120 (50 fps)
- Stream 1 (visible camera): 1080P/1,3MP/720P (25 fps)
- Stream2 (visible camera): D1/CIF/QCIF (25 fps)
- G.711u/G.711a/G.722.1/MP2L2/G.726/PCM
- 1x RJ45 10/100M auto-adaptative
- Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
-Up to 20simultaneous display
-Up to 32 users, 3 levels: admin, operator, user
- API, ONVIF, PSIA, ISAPI, and third-party management gateway
- Compatible with IE7+, Chrome18+, Firefox5.0+, Safari5.02+
- Alarm: 2 in / 2 out
- Audio: 1 in / 1 out
-Reset button
- MicroSD/SDHC/SDXC card slot(up to 128 GB), with manual recording or alarm
- BNC 1.0V [p-p] / 75O (PAL/NTSC) output

Electrical and environmental
- Power supply: 24V AC, 12V DC, PoE+
- Working temperature: -40°C ~+60°C
- RH: =90% (without condensation)
- IP67
- Lightning-proof 6KV

Physical features
-Metal case
- Dimensions: 314 x 104 x 292,7 mm
- Weight:1,55 kg
- Wall bracket and tube base are included

Note: The effective distance values shown are nominal values and should be used as an estimate. Consult your commercial for the recommended detection distances with our Vaelsys perimeter system.
