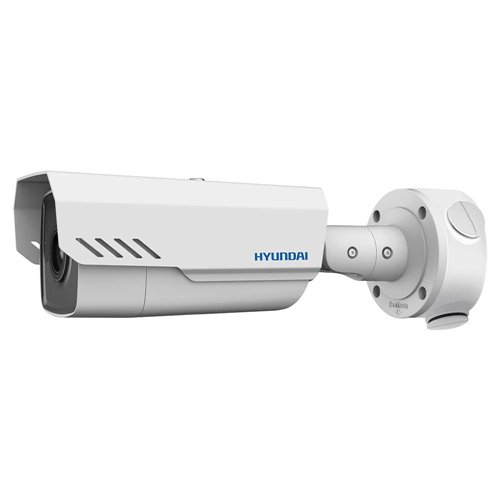

FPA sensor not cooled with vanadium oxide - HYU-441

Description
Thermal Network Bullet Camera equipped with built-in GPU which support intelligent behavior analysis algorithm, can realize high precision VCA detection and real-time alarm. It is applied to perimeter defense and fireprevention purposes in critical infrastructures such as: airport, railway, prison, power station, 4S stores, and so on. The prealarm system helps you discover unexpected events immediately and protects you from property loss.

Features
- FPA sensor not cooled with vanadium oxide
- Resolution: 384x288
- Thermal sensibility (NETD): <40 mk (@25°C, f/1.0)
- Pixel interval: 17 µm
- Spectral range: 8 µm ~ 14 µm
- Focal distance: 15 mm
- Viewing angle: 24,55° x 18,54°
- Minimum focus distance:2,5 meters
- Effective distance on people (1,8 x 0,5m): Detection (441 m), recognition (110 m), ID (55 m)
- Effective distance on vehicles (1,4x4m): Detection (1353 m), recognition (338 m), ID (169m)
- Effective VCA distance on people (1,8x0,5m):150 m
- Effective VCA distance on vehicles (1,4x4m): 450 m
- Temperature measurement distance (2x2m): 351 m
- Temperature measurement distance (1x1m): 177 m
-Fire detection distance (2x2m): 882 m
-FIre detection distance (1x1m): 441 m
- AGC adaptive, DDE, 3D-DNR
- AGC, 3D-DNR
- Dynamic Detail Enhancement
- 15 adjustablecolor palettes
- 4x VCA rules supported (tripwire, intrusion, IN/OUT region) and 8 VCA rules
- 3x types of temperature measurement rules supported, 21 rules (10 points, 10 regions and 1 line)
- Temperature range: -20ºC ~ +150ºC
- Temperature precision:±8°C
- 10 fire detection points supported
- Compression formats: H.265/H.264/MJPEG, H.265+ and H.264+ (baseline/main/high profile)
- Stream 1: 384x288 (50 fps)
- Stream 2: 384x288 (50 fps)
- Stream 3: 384x288 (50 fps)
- Salida BNC 1.0V [p-p] / 75O (PAL/NTSC)
- Audio: G.711u/G.711a/G.722.1/MP2L2/G.726/PCM
- Audio: 1 microphone in / 1 out
- Reliable temperature exception alarm function
- Ethernet: 1x RJ45 (10/100M) autoadaptive
- Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS,NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
- Compatibility API, ISAPI, SDK, and third-party management gateway
- Up to 32 users, 3 levels: admin, operator, user
- Up to 20 simultaneous display
- MicroSD/SDHC/SDXC (up to128GB), with manual/alarm recroding
- Alarm: 2 IN / 2 OUT (alarm link supported)
- Power supply: 24V AC, 12V DC /3A
- Consumption: 8W (20W with heater)
- PoE+ supported (802.3at, class 4)
- Working temperature: -40ºC ~+65ºC
- RH: =90% (without condensation)
- IP66
- Lightning-proof 6KV
- Metal case
- Dimensions: 314 x 104 x 292,7 mm
- Weight: 2 kg
- Wall bracket and tube base included

Note: The effective distance values shown are nominal values and should be used as an estimate. Ask your salesman for the recommended detection distances with our Vaelsys perimeter system.
