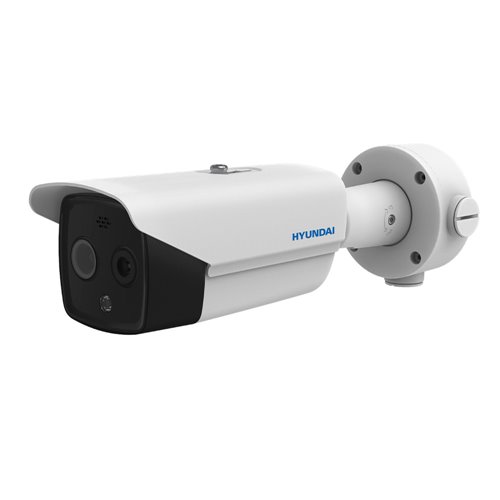

HYU-846 - Thermal + visible bullet camera HYU…

SKU: HYU-846

incl. VAT€1278,26

Price incl. VAT: €1278,26

Ex. VAT: €1022,61

Total discount:

VAT: €255,65

Thermal + visible bullet camera HYUNDAI NEXTGEN Thermal-Line series with IR illumination of 40 m, for outdoors. 4 Megapixel 1 / 2.7 CMOS viewable camera. 8mm visible lens. Thermal camera with 160 x 120 resolution, 9.7 mm thermal lens. Detection of people up to 285 meters and vehicles up to 875 meters. WDR 120dB, 3D-DNR. Intelligent detection (VCA). IP / ANALOG video output. 1 audio input / 1 output. 2 alarm inputs / 2 outputs. RS485 port. MicroSD slot. API, ISAPI. Lightning-proof 6KV. IP66. 12V DC. PoE.

Sold out / Not on stock

Back to: Dahua New

Product description: HYU-846

Description

Thermal camera

    FPA (Focal Plane Arrays) sensor not cooled with vanadium oxide
    160x120 thermal resolution (output image is 320x240)
    Pixel pitch: 17μm
    Thermal sensitivity (NETD): <40 mk (@ 25 ° C, f / 1.1)
    Spectrum range: 8 μm ~ 14 μm
    Focal length (thermal): 9.7mm
    IFOV: 2.74 mrad
    Viewing Angle (Thermal): 15.96 ° x 12 °
    1.2 meter minimum focusing distance
    Effective distance in people: Detection (285 m), recognition (71 m), identification (36 m)
    Effective distance in vehicles: Detection (875 m), recognition (219 m), identification (109 m)
    15 adjustable color palettes, 3D-DNR
    Dynamic detail enhancement
    Support 4 kinds of VCA rules (intrusion, line crossing, region in and region out), maximum 8 rules
    -20 ° C ~ + 150 ° C temperature range
    ± 8 ° C temperature accuracy
    Support 3 kinds of temperature measurement rulers, 21 rulers (10 points, 10 regions and 1 line)
    Supports 10 fire detection points

Visible camera

    Image Sensor (Visible Camera) 4 Megapixel 1 / 2.7 Progressive Scan CMOS
    Effective pixels: 2688 x 1520
    40 meter infrared illumination
    Minimum illumination: 0.0089 lux F1.6 (color) / 0.0018 lux F1.6 (B / W) / 0 lux IR On
    Focal Length (Visible Optics): 8mm
    Angle of View (Visible Optics): 39.42 ° x 22.14 °
    Removable mechanical filter
    WDR 120dB
    Supports bi-spectrum image fusion, picture-in-picture preview

IP communication and integration

    Compression formats: H.265 / H.264 / MJPEG
    Stream 1 thermal camera: 1280x720, 704x576, 640x480, 352x288, 320x240
    Stream 2 thermal camera: 704x576, 352x288, 320x240
    Stream 1 visible camera: 4MP / 1080P / 720P at 25 ips
    Stream 2 visible camera: D1 / CIF / QCIF at 25 ips
    Audio compression: G.711u / G.711a / G.722.1 / MP2L2 / G.726 / PCM
    1 RJ45 10 / 100M auto-adaptive port
    Protocols: IPv4 / IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
    Up to 20 simultaneous views
    Up to 32 users, 3 levels: administrator, operator, user
    API, ISAPI, and third-party management gateway compatibility
    Compatible with browsers IE9 +, Chrome31-44, Firefox30-51, Safari5.02 + (Mac)
    2 alarm inputs / 2 outputs
    1 audio input / 1 output
    Reset button
    MicroSD / SDHC / SDXC card slot (up to 128GB), with support for manual or alarm recording
    BNC output 1.0V [p-p] / 75Ω (PAL / NTSC)
    RS485 port

Electrical and environmental

    Power supply: 12V DC, PoE (802.3af, class 3)
    Consumption: max. 7.5W
    -40 ° C ~ + 65 ° C operating temperature
    Relative humidity: ≤95% (non-condensing)
    Degree of protection IP66
    6KV Lightning-proof

Physical characteristics

    Metal housing
    Dimensions: 113.5 (W) x 115.2 (H) x 358.3mm
    Weight: 1.76 kg
    Includes wall bracket and tube base

Note: The effective distance values ??shown are nominal values ??and should be used as an estimate. Check with your sales representative for the recommended detection distances with our Vaelsys Perimeter System.
