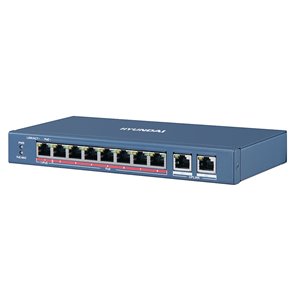

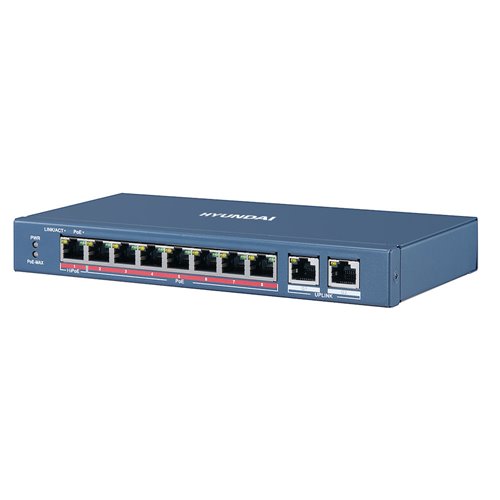

HYU-822 - Commercial unmanageable switch with…



Description

100Mbps Long Range PoE L2 Switch. Provides one 10 / 100Mbps Hi-PoE port, seven 10 / 100Mbps PoE ports and two 10 / 100Mbps RJ45 ports. The switches provide ADVANCED Hi-PoE / PoE technology and support extended mode with long range access up to 250 meters. Pre-stable transmission of important surveillance area videos can also be guaranteed when connecting to high priority ports. Meanwhile, the two 10 / 100Mbps RJ45 uplink ports ensure applications of multiple network solutions.



characteristics

    1 10 / 100Mbps Hi-PoE port
    7 10 / 100Mbps PoE ports
    2 10 / 100Mbps RJ45 uplink ports
    Hi-PoE port supports IEEE 802.3af / at / bt standard (60W maximum)
    PoE ports support the IEEE 802.3af / at standard
    Supports IEEE 802.3, IEEE 802.3y and IEEE 802.3x standards
    When the switch is in the EXTENDED mode and the data rate is 10Mbps, the PoE ports support long-distance data transmission up to 250 meters, 150 meters in the case of Hi-PoE port
    High priority ports
    PoE ports have 6 kV surge protection
    PoE power management
    Dual uplink network design
    Store-and-forward
    Heavy-duty solid metal housing
    Reliable fanless design


Specifications

    1 Hi-PoE 10 / 100M port
    7 10 / 100M PoE ports
    2 Uplink RJ45 10 / 100M ports
    Transmission up to 250 meters (150 meters Hi-PoE) in EXTENDED mode
    PoE consumption: ≤30W per port, ≤110W in total
    Hi-PoE consumption: ≤60W
    Supported standards: IEEE 802.3, IEEE802.3u, IEEE802.3x, IEEE802.3af (PoE), IEEE 802.3at (PoE +), IEEE 802.3bt (Hi-PoE)
    5.6Gbps switching capacity
    4.166Mpps packet transfer rate
    MAC addresses: 16K
    Forwarding method: Store-and-Forward
    2 priority rows
    Power supply: 48V DC, 1.35A
    Consumption: <120W
    Storage temperature -40 ° C ~ + 85 ° C
    Storage relative humidity 5% ~ 95% non-condensing
    -10 ° C ~ + 55 ° C operating temperature
    Operating relative humidity 5% ~ 95% non-condensing
    Lightning-proof 6KV
    Metal laminated housing
    Dimensions: 217.6 (H) x 27.8 (H) x 103.35 mm
    Weight: 550g
