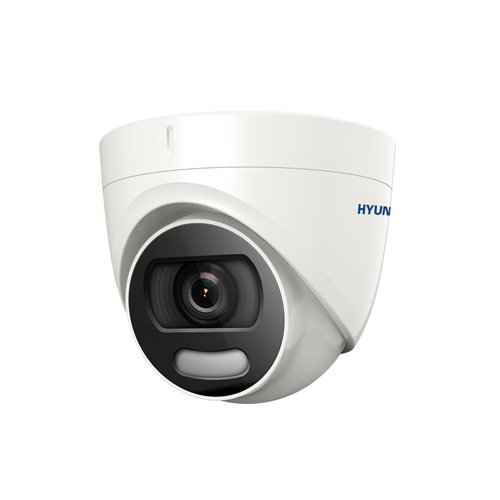

HYU-802 - 4-in-1 fixed dome Color View series…

characteristics

    5MP resolution (2560x1944)
    24 hour color mode
    WDR 130dB, 3D-DNR
    2.8mm fixed lens
    Smart white lighting up to 20 meters
    4-in-1 video output (switchable)
    Degree of protection IP67



Specifications

    5 megapixel CMOS sensor
    Digital resolution: 5MP (2560x1944) @ 20 ips (TVI, AHD)
    4-in-1 video output (switchable):
        HDTVI: 5MP (20 ips), 4MP, 1080P (25/30 ips)
        HDCVI: 4MP (25/30 ips)
        AHD: 5MP (20 ips), 4MP (25/30 ips)
        CVBS: 960H, PAL / NTSC
    0.0005 lux F1.0 color / 0 lux with white light
    24 hour color mode (does not switch to B / W mode)
    2.8mm fixed lens
    16X slow shutter
    White lighting up to 20 meters
    OSD menu via coaxial
    Automatic and manual white balance
    Automatic gain control
    WDR 130dB
    Backlight compensation (BLC, HLC)
    3D-DNR noise reduction
    4 programmable zone video sensor
    4 programmable privacy masks
    Brightness and sharpness adjustment
    Mirror mode
    -40 ° C ~ + 60 ° C operating temperature
    Relative humidity: ≤90% (non-condensing)
    Degree of protection IP67
    Metal and plastic housing
    Power supply: 12V DC (± 25%)
    Consumption: Max. 3.5W
    Dimensions: Ø109.82 x 85.56 mm
    Weight: 350g
    3AXIS: 0 ° ~ 360 ° (PAN), 0 ° ~ 75 ° (TILT), 0 ° ~ 360 ° (Rotation)
