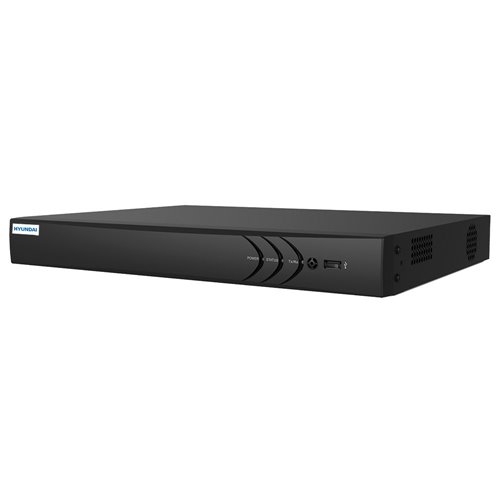

HYU-764N - ZVR 5 in 1 with 16 channels HDCVI /…

SKU: HYU-764N

incl. VAT€508,69

Price incl. VAT: €508,69

Ex. VAT: €406,95

Total discount:

VAT: €101,74

ZVR 5 in 1 with 16 channels HDCVI / HDTVI / AHD / CVBS + 8 channels IP. Video formats H.265 +, H265, H.264 +, H.264. Two-way audio. 16 audio inputs via coaxial. 16-channel synchronized playback. Recording 8MP (8 ips), 5MP (12 ips), 4MP (15 ips), 3MP (18 ips), 1080P, 720P, 960H, D1 / 4CIF, VGA, CIF, QVGA, QCIF (25 ips). Simultaneous HDMI (4K, 2K) and VGA (1080P) outputs. BNC output to D1 / 4CIF. 2 HDD SATA capacity. Onvif, P2P, DDNS. 2 USB, 1 RS485. 12V DC.

Sold out / Not on stock

Back to: Dahua New

Product description: HYU-764N

Description

specs

16-channel 5-in-1 ZVR
5 technologies: IP cameras, HDCVI, HDTVI, AHD and analog CVBS
Supports IP cameras with H.265 + / H265 / H.264 + / H.264 formats
16 BNC inputs (supports coaxitron):
• HDCVI: 4MP / 1080P / 720P
• HDTVI: 8MP / 5MP / 4MP / 3MP / 1080P / 720P
• AHD: 5MP / 4MP / 1080P / 720P
• Analog CVBS: 960H
8 IP inputs up to 8MP (16 + 8)
Simultaneous VGA (1080P) and HDMI (4K, 2K) outputs
BNC video output
1 RCA input / 1 RCA output
16 audio inputs via coaxial cable
Two-way audio
Recording resolution: 8MP (TVI / IP only), 5MP, 4MP, 3MP, 1080P, 720P, etc.
Main stream: 8MP (8 ips), 5MP (12 ips), 4MP (15 ips), 3MP (18 ips), 1080P / 720P (25 ips)
Secondary stream: WD1, D1 / 4CIF, CIF (25 ips)
16-channel synchro playback
Internal capacity for 2 SATA HDDs up to 10TB (sold separately)
Graphical User Interface (GUI) and One-Key Recording (Wizard) Startup Support
Smart search for more efficient playback
Supports third-party cloud storage (Dropbox, Google Drive, Microsoft OneDrive)
Motion detection on all analog channels with deep learning based human and vehicle classification
Perimeter protection of up to 4 channels with classification of people and vehicles
Self-adaptive RJ45 (10/100 / 1000M) Ethernet network interface
Network protocols: TCP / IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP ™, HTTPS
ONVIF compliant
Remote access for up to 128 users
Remote access through iPhone / iPad, Android devices
P2P in the cloud, DDNS DEMES, Push and channel zero
Connections: 1 USB 2.0, 1 USB 3.0, 1 RS485 half-duplex
Power supply: 12V DC, 5A
Consumption: ≤19W
Operating temperature: -10 ° C ~ + 55 ° C
Relative humidity: 10 ~ 90%
Dimensions: 380 x 320 x 48 mm (desktop)
Weight: ≤2.1 kg
