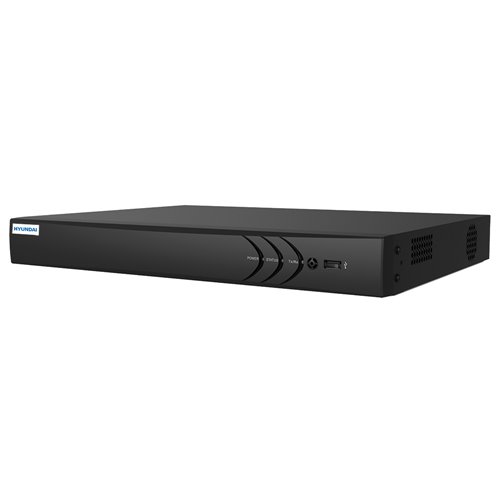

specs
16 IP channels up to 8MP
Video compression: H.265 +, H.265, H.264 + and H.264
Simultaneous HDMI (4K) and VGA (1080P) video outputs
1 RCA input / 1 RCA audio output
Two-way audio via RCA input / output
Recording resolution: 4K / 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, UXGA, 720P, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
Bandwidth: 160 Mbps incoming and 80 Mbps outgoing
Decoding capacity: 1 channel 8MO (25 ips), 5 channels 1080P (25 ips)
Supports various IVS (video analytics) events
Configurable special camera smart functions such as motion detection, line crossing, intrusion, heat map, ANPR and people counting
Playback of up to 16 channels
Internal capacity for 2 SATA HDDs up to 8TB (sold separately)
New user interface with a simpler user experience
Smart search / smart playback to improve playback efficiency
Self-adaptive Gigabit (10/100 / 1000Mbps) RJ45 network port
16 self-adaptive PoE / PoE + (10 / 100Mbps) ports with a total power of 150W
Remote access through iPhone / iPad, Android devices
Multi browser compatibility: Chrome, Firefox, Safari, IE
P2P in the cloud, DDNS DEMES, Push and channel zero
Plug & Play connection with NEXTGEN IP cameras
Communication ports: 1 USB 2.0 port, 1 USB 3.0 port
Power supply: 100V ~ 240V AC (≤15W, not counting discs)
-10 ° C ~ + 55 ° C operating temperature
10% ~ 90% relative humidity
Dimensions: 385 (W) 52 (H) x 315 mm
Weight: ≤2.6 kg
Desktop installation
