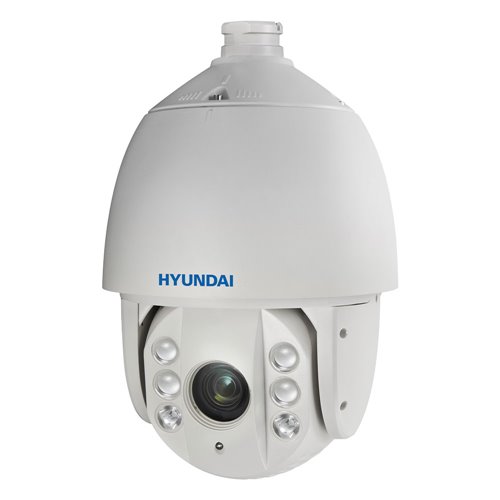

HYU-692N - Motorized dome 4 in 1 of 160 ° / se…

specs

1 / 2.8 "CMOS sensor, 2 megapixel
Digital Resolution: 1080P (1920x1080)
Day / night mode with removable mechanical filter
Infrared illumination up to 150 meters
0.005 lux F1.2 color / 0.001 lux F1.2 B / W / 0 lux IR On
32X Optical Zoom: 4.8 ~ 153mm
Viewing angle: 54.2 ° ~ 1.97 ° (H)
Automatic, semi-automatic and manual focus modes
3.5 second zoom speed
16X digital zoom
4 in 1 output: HDCVI / HDTVI / AHD / CVBS
Imaging Modes: BLC, HLC, WDR 120dB, 3D-DNR, EIS, Regional Focus
Automatic and manual gain control
White balance with 6 modes
8 programmable privacy masks
Horizontal positioner: 360 ° continuous
Vertical positioner: -15 ° ~ 90 °, autoflip 180 °
Manual speed: 0.1 ° ~ 160 ° / sec. (H), 0.1 ° ~ 120 ° / sec. (V)
Preset speed: 160 ° / sec. (H), 160 ° / sec. (V)
256 presets
Pelco-D / P protocols (RS485 half-duplex), Hyundai protocol
5 patterns (with a total recording of not less than 10 minutes), 10 rounds (32 presets per round)
RS485 half-duplex interface
Power supply: 24V AC, max. 40W (IR 14W)
-30 ° C ~ + 65 ° C operating temperature
Humidity: <90%
Degree of protection IP66
IK10 vandal protection
Lightning-proof (4000V), surge and surge protection
Dimensions: Ø220 x 353.4 mm
Weight: 4.5 kg
Does not include support
Does not include feeder
