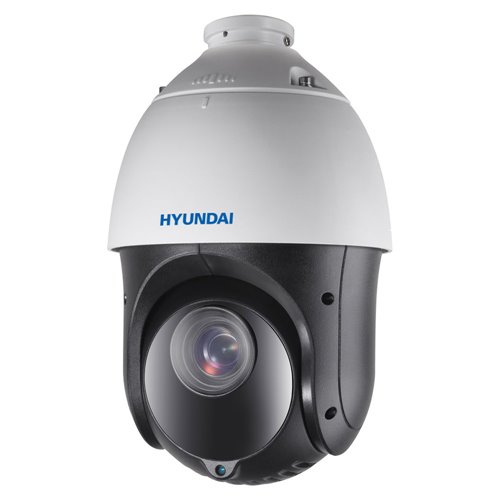

HYU-689N - 4-in-1 motorized dome of 80 ° / sec…

specs

1 / 2.8 "CMOS sensor, 2 megapixel
Digital Resolution: 1080P (1920x1080)
Day / night mode with removable mechanical filter
Infrared illumination up to 100 meters
0.005 lux F1.6 color / 0.001 lux F1.6 B / W / 0 lux IR On
15X optical zoom: 5 ~ 75mm
Viewing angle: 53.8 ° ~ 4 ° (H)
Automatic, semi-automatic and manual focus modes
2.4 second zoom speed
16X digital zoom
4 in 1 output: HDCVI / HDTVI / AHD / CVBS
Imaging Modes: BLC, HLC, WDR 120dB, 3D-DNR, EIS, Regional Focus
Automatic and manual gain control
White balance with 6 modes
8 programmable privacy masks
Horizontal positioner: 360 ° continuous
Vertical positioner: -15 ° ~ 90 °, autoflip 180 °
Manual speed: 0.1 ° ~ 80 ° / sec. (H), 0.1 ° ~ 80 ° / sec. (V)
Preset speed: 80 ° / sec. (H), 80 ° / sec. (V)
256 presets
Pelco-D / P protocols (RS485 half-duplex), Hyundai protocol
5 patterns (with a total recording of not less than 10 minutes), 10 rounds (32 presets per round)
RS485 half-duplex interface
Power supply: 12V DC, max. 20W (IR 7W)
-30 ° C ~ + 65 ° C operating temperature
Humidity: <90%
Degree of protection IP66
Lightning-proof (4000V), surge and surge protection
Dimensions: Ø164.5 x 295 mm
Weight: 2 kg
Includes wall bracket
Does not include feeder
