incl. VAT€569,04
Price incl. VAT: €569,04
Ex. VAT: €455,24
Total discount:
VAT: €113,81

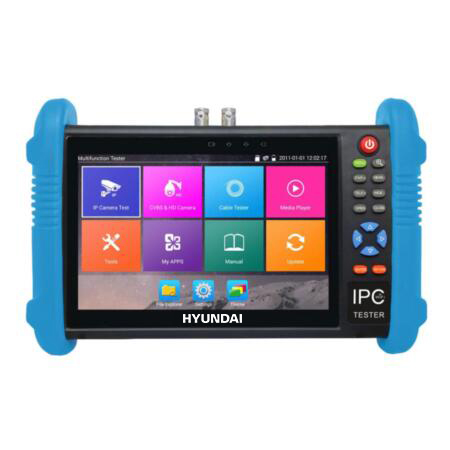

5-in-1 multi-function CCTV tester with 7 "touch screen with support for TVI / CVI / AHD up to 3MP / 4MP and 4K H.265 IP. Built-in WiFi. Audio input / output. PTZ control. UTP test. Function TDR PoE output 24V, 12V and 5V power output Supports Onvif HDMI 1080P input / output 2 Gigabit RJ45 12V DC.
+20 left on stock
Product description: HYU-274N
Characteristics
- HYU-274N
- 5-in-1 multi-function CCTV tester (CVBS, CVI, TVI, AHD, IP)
- 7 "touch screen (1200x800 pixels)
- Supports H.265, 4K and H.265 / H.264 decoding with main stream display
- HDMI input signal, support 1080P
- HDMI output with a resolution of 1920x1080
- Dual IP / analog test (simultaneous analog and IP camera test)
- Drop-down menu, menu accessible via shortcut key
- Incorporates WiFi: Allows receiving images from WiFi cameras and supports the creation of WiFi hotspot
- Supports HD-TVI 3.0 and HD-CVI 3.0 with 4MP and 3MP CVI and TVI camera image tests
- AHD / CVI / TVI camera test supports image capture, video recording and playback and 4X magnification
- CVBS loop test: Transmits or receives analog video signal
- ONVIF IP camera test, supports 2592x1520 resolution
- Analog camera image display: Automatically adapts to PAL and NTSC formats
- Custom IP cameras with support for more than 80 brands (DAHUA, KEDA, Samsung, HIKVISION, TIANDY, etc.)
- Fast onvif: With one key we generate a test report, including IP address, resolution and decoding
- Connection of IP cameras by RJ45 and WiFi, supports 1080p
- 2 Gigabit Ethernet ports
- WiFi analyzer
- The tester can rotate 180 °, ideal for cable and power connection
- Real-time display
- PTZ control, image captures, video recording, recorded video playback
- TV output with color bar generator
- UTP cable test: TDR function (to locate and locate break points in UTP cable), connection status, cable sequence on screen, saving test report
- PoE voltage measurement, PING test, IP address scan, port flashing, etc.
- 48V DC PoE Output: Supplies temporary power to PoE cameras
- 24V DC, 12V / 2A and 5V / 2A power output
- Audio input / output
- LED flashlight, calculators, players and other tools / applications
- Power supply: 12V DC / 2A
- Incorporates 7.4V, 7500mAh polymer lithium battery
- Working temperature: -10 ° C ~ + 50 ° C
- Dimensions: 240 x 145 x 46 mm
- Weight: 620 g
- Includes apps: EVOPLUS, HYUVMS, ASMS, HYU CONNECT, HYUPLUS
