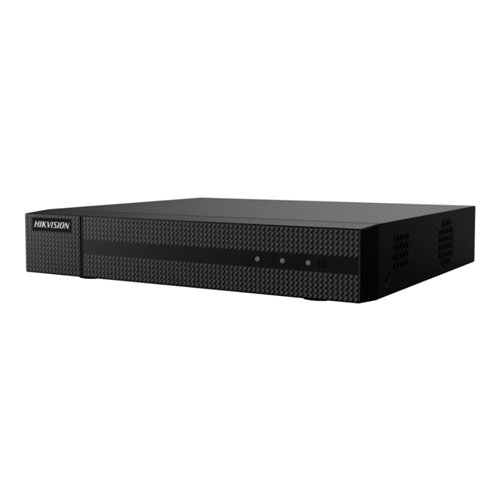

HWN-5232MH-16P - HIKVISION® HiWatch T Series 32 Chan…

specs

32 IP camera inputs
Supports live view, storage and playback of connected cameras with up to 8MP resolution
Compression format H.265 / H.265 + / H.264 / H.264 + / MPEG4
Incoming bandwidth: 256 Mbps
Outgoing bandwidth: 160 Mbps
Video output VGA 1080P and HDMI 4K
Two-way audio: 1 RCA input / 1 RCA output
Recording resolution: 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, UXGA, 720P, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
16-channel synchro playback
Decoding Capability 2ch 8MP (25 ips), 4ch 4MP (30 ips), 8ch 1080P (30 ips)
2 HDD capacity up to 6TB (HDD not included)
Self-adaptive RJ45 (10/100 / 1000M) Ethernet network interface
Network protocols: TCP / IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP ™, HTTPS
Centralized management of IP cameras, including configuration, information import / export, real-time information display, two-way audio, update, etc.
Allows connection to HIKVISION smart IP cameras and VCA alarm recording, playback and backup
Supports VCA detection alarms
Instant playback for the assigned channel during multi-channel viewing mode
Smart search for selected area in video and smart playback to improve playback efficiency
Supports hard drive quotas and group modes - Allows you to assign different capacities to different channels
Hik-Connect for easy management
Connections: 1 USB 2.0, 1 USB 3.0
Power supply: 100V ~ 240V AC
NVR consumption (without hard drives and PoE): ≤15W
Consumption (maximum): ≤280W
The rear panel incorporates 16 PoE / PoE + ports (IEEE 802.3 at / af)
PoE consumption: ≤200W
Operating temperature: -10 ° C ~ + 55 ° C
Relative humidity: 10 ~ 90%
Dimensions: 385 x 315 x 52 mm (1U)
Weight: ≤3 kg
