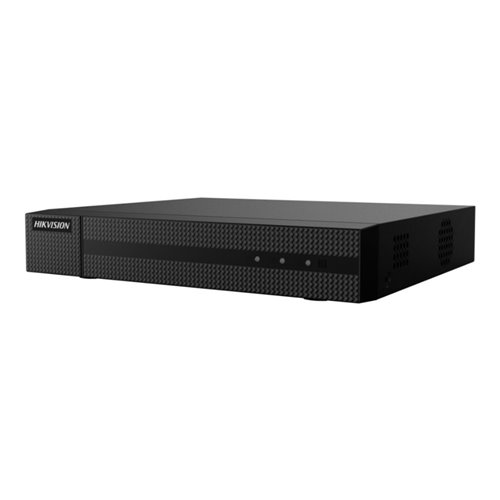

specs
H.265 / H.265 + / H.264 / H.264 + / MPEG4 encoding
16 IP camera inputs
Incoming bandwidth: 160 Mbps
Outgoing bandwidth: 80 Mbps
Video output VGA 1080P and HDMI 4K
Two-way audio: 1 RCA input / 1 RCA output
Recording resolution: 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, UXGA, 720P, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
Synchronized playback of up to 16 channels
1ch 8MP or 4ch 1080P real-time decoding capability
Video and audio stream
Capacity for 1 HDD up to 6TB (HDD not included)
Smart search for efficient playback
Supports multiple VCA (Video Content Analytics) events
Self-adaptive RJ45 (10/100 / 1000M) Ethernet network interface
Network protocols: TCP / IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP ™, HTTPS
Connections: 2 USB 2.0
Power supply: 12V DC
Consumption (without hard drives): ≤10W
-10 ° C ~ + 55 ° C operating temperature
Relative humidity: 10 ~ 90%
Dimensions: 315 (W) x 48 (H) x 240 mm
Weight: ≤1 kg
Desktop installation
