specs

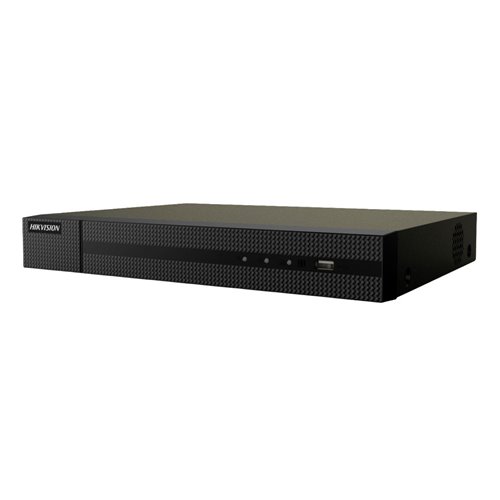

8-channel IP NVR H.265 + / H.265 / H.264 + / H.264 format
8 IP camera inputs
Incoming bandwidth: 60 Mbps
Outgoing bandwidth: 60 Mbps
Video output VGA (1080P) and HDMI (1080P)
Display / Playback Resolution: 6MP, 4MP, 3MP, 1080P, UXGA, 720P, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
Recording resolution: 6MP, 4MP, 3MP, 1080P, UXGA, 720P, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
8-channel synchro playback
1 channel 6MP at 25 ips or 4 channels 1080P at 25 ips capability
Capacity for 1 HDD up to 6TB (HDD not included)
Self-adaptive RJ45 (10 / 100M) Ethernet network interface
Network protocols: TCP / IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP ™
Connections: 2 USB 2.0
Power supply: 48V DC
NVR consumption: ≤10W
The rear panel incorporates 8 PoE + ports (IEEE 802.3 at / af)
Maximum PoE consumption: ≤75W
Operating temperature: -10 ° C ~ + 55 ° C
Relative humidity: 10 ~ 90%
Dimensions: 265 x 225 x 48 mm (1U)
Weight: ≤1 kg
