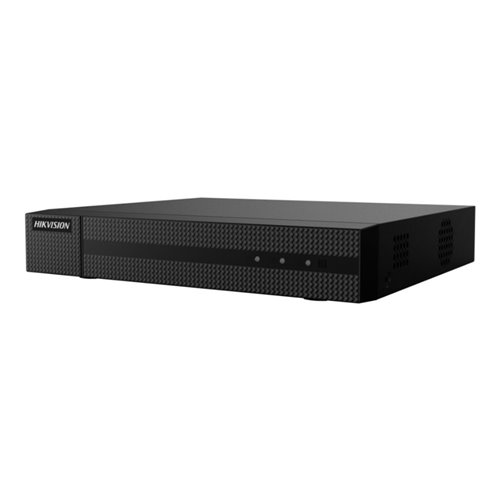

HWD-7216MH-G2-S - HIKVISION® HiWatch T Series 5-in-1…

specs

    5 technologies: IP cameras, HDCVI, HDTVI, AHD and analog CVBS with automatic signal recognition
    HDTVI signal transmission 1080P up to 800 meters and 720P up to 1200 meters
    16 BNC channels up to 8MP (BNC inputs can be converted to IP) with coaxitron support
    16 8MP IP channels (added to BNC inputs)
    Video compression: H.265 +, H.265, H.264 +, H.264
    HDMI (4K) and VGA (1080P) video output
    1 RCA input / 1 RCA audio output
    16 audio inputs through coaxial cable
    Two-way audio via RCA input / output
    Audio compression: G.711u
    Recording resolution: 8MP, 5MP, 4MP, 1080P, 720P, WD1, 4CIF, VGA, CIF
    64 Mbps maximum incoming bandwidth
    Main Stream: 8MP (8 ips), 5MP (12 ips), 4MP (15 ips), 1080P, 720P, WD1, 4CIF, VGA, CIF (25 ips)
    Secondary stream: WD1, 4CIF, CIF (25 ips)
    16-channel synchro playback
    Supports multiple VCA (Video Content Analytics) events
    Supports line crossing detection and intrusion detection on all channels, and 2-channel sudden scene change detection
    Smart search
    Internal capacity for 2 SATA HDDs up to 10TB (sold separately)
    Self-adaptive Gigabit (10/100 / 1000M) RJ45 network port
    ONVIF compliant
    Remote access for up to 128 users
    Communication ports: 1 USB 2.0 port, 1 USB 3.0 port
    Power supply: 12V DC / 5A (≤25W, not counting discs)
    -10 ° C ~ + 55 ° C operating temperature
    10% ~ 90% relative humidity
    Dimensions: 380 (W) 48 (H) x 320 mm
    Weight: ≤2 kg
    Desktop installation
