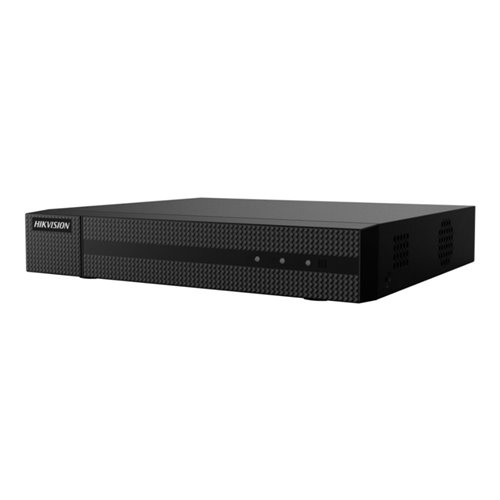

HWD-6108MH-G2-S - HIKVISION® HiWatch T Series 5-in-1…

specs

    5 technologies: IP cameras, HDCVI, HDTVI, AHD and analog CVBS with automatic signal recognition
    HDTVI signal transmission 1080P up to 800 meters and 720P up to 1200 meters
    8 BNC channels up to 1080N (BNC inputs can be converted to IP) with coaxitron support
    4 6MP IP channels (added to BNC inputs)
    Video compression: H.265 +, H.265, H.264 +, H.264
    HDMI (1080P) and VGA (1080P) video output
    1 RCA input / 1 RCA audio output
    8 audio inputs through coaxial cable
    Two-way audio via RCA input / output
    Audio compression: G.711u
    Recording resolution: 6MP (IP only), 4MP, 4MP Lite, 1080P, 720P, WD1, 4CIF, VGA, CIF
    96 Mbps maximum incoming bandwidth
    Main stream 4MP Lite mode enabled: 4MP Lite (15 ips), 1080P Lite, 720P Lite, VGA, WD1, 4CIF, CIF (25 ips)
    Main stream 1080P Lite mode enabled: 1080P Lite, 720P Lite, VGA, WD1, 4CIF, CIF (25 ips)
    Main stream 4MP Lite mode off: 4MP (8 ips), 4MP Lite, 1080P, 720P, WD1, 4CIF, VGA, CIF (15 ips)
    Main stream 1080P Lite mode off: 1080P, 720P (15 ips), VGA, WD1, 4CIF, CIF (25 ips)
    Main stream 720P mode: 720P, VGA, WD1, 4CIF, CIF (25 ips)
    Secondary stream: WD1, 4CIF, 2CIF (12 ips), CIF, QVGA, QCIF (25 ips)
    8-channel synchro playback
    Smart search
    Internal capacity for 1 SATA HDD up to 10TB (sold separately)
    Self-adaptive RJ45 Fast Ethernet (10 / 100M) network port
    ONVIF compliant
    Remote access for up to 64 users
    Communication ports: 2 USB 2.0 ports
    Power supply: 12V DC / 1.33A (≤12W, not counting discs)
    -10 ° C ~ + 55 ° C operating temperature
    10% ~ 90% relative humidity
    Dimensions: 260 (W) 45 (H) x 222 mm
    Weight: ≤0.8kg
    Desktop installation
