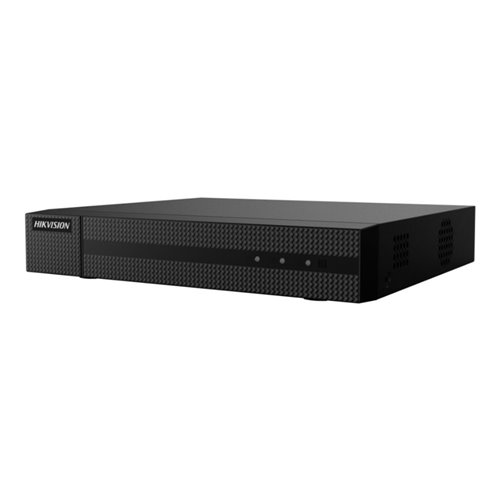

HWD-6104MH-G2-S/260 - HIKVISION® HiWatch T Series 5-in-1…

SKU: HWD-6104MH-G2-S/260

incl. VAT€101,28

Price incl. VAT: €101,28

Ex. VAT: €81,02

Total discount:

VAT: €20,26

HIKVISION® HiWatch T Series 5-in-1 DVR with 4 channels HDCVI / HDTVI / AHD / CVBS + 1 channel IP 4MP. H.265 + / H.265 / H.264 + / H.264. Simultaneous 4-channel playback. Recording 4MP, 4M-N, 3MP, 1080P, 1080N, 720P, 960H, D1 / 4CIF, VGA, CIF, QVGA, QCIF. VGA and HDMI outputs at 1080P. Two-way audio. Supports 1 SATA HDD. ONVIF. Compatible iVMS-4200, Hik-Connect, iVMS-5200. 12V DC.

Sold out / Not on stock

Back to: Dahua New

Product description: HWD-6104MH-G2-S/260

Description

HiWatch

Key features

    5 technologies: IP cameras, HDCVI, HDTVI, AHD and analog CVBS
    1 IP camera can be connected
    H.265 + / H.265 / H.264 + / H.264
    Recording up to 4MP
    Long distance transmission via coaxial cable or UTP
    Simultaneous VGA and HDMI outputs
    1 HDD capacity
    Smart search
    VQD (Video Quality Diagnostics)
    Supports PTZ control via VMS Omnicast, Genetec protocol
    Remote management via Hik-Connect and DDNS

Specifications

    Compression format H.265 + / H.265 / H.264 + / H.264
    Supports coaxitron connection
    4 BNC inputs:
        HDTVI: 4MP, 4M-N, 3MP, 1080P, 1080N, 720P
        HDCVI: 1080P, 1080N, 720P
        AHD: 1080P, 1080N, 720P
        Analog CVBS: 960H
    1 IP 4MP input
    Simultaneous VGA and HDMI outputs up to 1920x1080
    Two-way audio: 1 RCA input / 1 RCA output
    Recording resolution: 4MP, 4M-N, 3MP, 1080P, 1080N, 720P, WD1, 4CIF, VGA, CIF, QVGA, QCIF
    Main stream:
        4MP Lite (4M-N) mode enabled: 4M-N (15 ips), 1080N, 720P Lite, WD1, 4CIF, VGA, CIF (25 ips)
        4MP Lite (4M-N) mode off: 4MP (8 ips), 4M-N, 1080N, 720P Lite, WD1, 4CIF, VGA, CIF (15 ips)
        3MP mode: 3MP (15 ips)
        1080P Lite mode enabled: 1080N, 720P Lite, WD1, 4CIF, VGA, CIF (25 ips)
        1080P Lite mode off: 1080P, 720P (15 ips), WD1, 4CIF, VGA, CIF (25 ips)
    Secondary stream: WD1, 4CIF, 2CIF (12 ips), CIF, QVGA, QCIF (25 ips)
    Simultaneous 4-channel playback
    Internal capacity for 1 SATA HDD up to 6TB (sold separately)
    Self-adaptive RJ45 (10 / 100M) Ethernet network interface
    Network protocols: TCP / IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP ™, HTTPS
    ONVIF compliant
    Compatible with iVMS-4200, Hik-Connect and iVMS-5200 software
    Remote access for up to 32 users
    Remote access through iPhone / iPad, Android devices
    Multi browser compatibility: Chrome, Firefox, Safari, IE
    Connections: 2 USB 2.0 ports
    Power: 12V DC
    Consumption: ≤8W
    Operating temperature: -10 ° C ~ + 55 ° C
    Relative humidity: 10 ~ 90%
    Dimensions: 260 x 222 x 45 mm
    Weight: 800g
