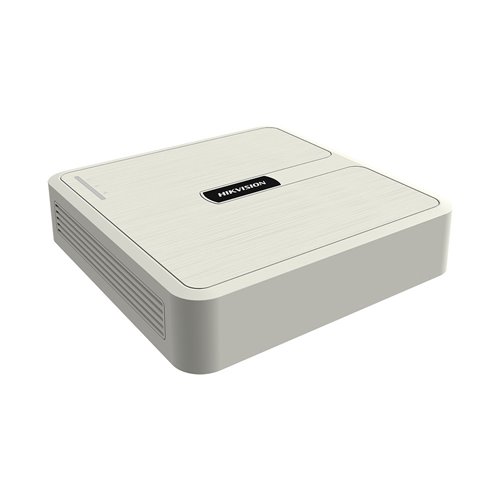

HWD-5116 - HIKVISION® 16 channel 5-in-1 DVR Hi…




Key features
• 5 technologies: IP, HDCVI, HDTVI, AHD and CVBS
• Up to 2 IP cameras connection
• Recording up to: 1080N (1080P Lite, 2M-n)
• Long distance transmission via coaxial cable or UTP
• VGA and HDMI simultaneous output
• 1 HDD capacity
• Smart search
• VQD
• PTZ control supported via VMS Omnicast, Genetec protocol
• Remote management via Hik-Connect and DDNS

Specs
- H.264+/H.264
- Coaxitron connection supported
- 16 BNC input:
  • HDTVI: 1080N (960x1080), 720P (1280x720)
  • HDCVI: 1080N (960x1080), 720P (1280x720)
  • AHD: 1080N (960x1080), 720P (1280x720)
  • CVBS: 960H
- 2 IP inputs 960P
- VGA and HDMI simultaneous output up to 1920x1080
- 2 way audio: 1 RCA in / 1 RCA out
- Recording resolution: 1080N, 720P, WD1, 4CIF, VGA, CIF, QVGA, QCIF
- Stream 1:
  • 1080P Lite mode ON: 1080N, 720P Lite, WD1, 4CIF, VGA (12 fps), CIF (25 fps)
  • 1080P Lite mode OFF: 720P, WD1, 4CIF, VGA (12 fps), CIF (25 fps)
- Stream 2: CIF, QVGA, QCIF (25 fps)
- Simultaneous playback of 16 channels
- 1 HDD SATA internal capacity up to 6TB (not included)
- Ethernet RJ45 (10/100M) auto-adaptive
- Network protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
- Compatible with ONVIF
- Compatible with software iVMS-4200, Hik-Connect and iVMS-5200
- Remote access up to 128 users
- Remote access via iPhone/iPad, Android
- Multi browser compatibility: Chrome, Firefox, Safari, IE
- Connections: 2x USB 2.0
- Power supply: 12V DC
- Consumption: ≤20W
- Working temperature: -10°C ~ +55°C
- RH: 10~90%
- Dimensions: 285 x 210 x 45 mm (desktop)
- Weight: 1,2 kg
