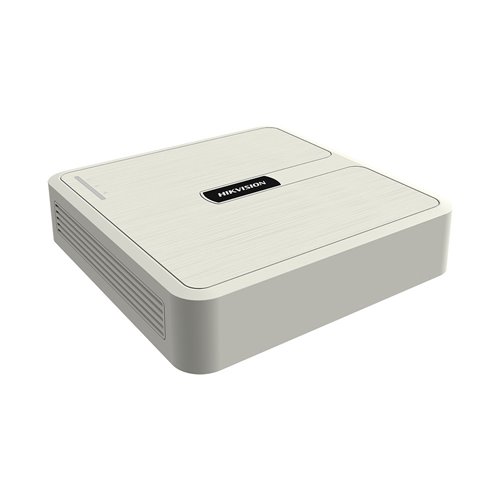

HWD-5104-S - HIKVISION® HiWatch T Series 5-in-1…

Specs

    5 technologies: IP cameras, HDCVI, HDTVI, AHD and CVBS
    HDTVI 720P signal transmission up to 1200 meters
    4 BNC channels up to 1080N (BNC inputs can be converted to IP) with coaxitron support
    1 IP channel at 1080P (added to BNC inputs)
    Video compression: H.264 +, H.264
    HDMI video output (1080P) and VGA output (1080P)
    1 RCA input / 1 RCA audio output
    4 audio inputs through coaxial cable
    Two-way audio via RCA input / output
    Audio compression: G.711u
    Recording resolution: 1080P (IP only), 1080P Lite, HD 720P Lite, 720P, WD1, 4CIF, VGA, CIF
    64 Mbps maximum incoming bandwidth
    Main stream 1080P Lite mode enabled: 1080P Lite, HD 720P Lite, WD1, 4CIF, VGA, CIF (25 ips)
    Main stream 1080P Lite mode off: 720P, WD1, 4CIF, VGA, CIF (25 ips) for 720P streaming and WD1, 4CIF, VGA, CIF (25 ips) for standard streaming
    Secondary stream: CIF, QVGA, QCIF (25 ips)
    4-channel synchro playback
    Internal capacity for 1 SATA HDD up to 6TB (sold separately)
    Smart search
    Self-adaptive RJ45 Fast Ethernet (10 / 100M) network port
    ONVIF compliant
    Remote access for up to 32 users
    Communication ports: 2 USB 2.0 ports
    Power supply: 12V DC, 1.5A (≤8W, not counting discs)
    -10 ° C ~ + 55 ° C operating temperature
    10% ~ 90% relative humidity
    Dimensions: 200 (W) 45 (H) x 200 mm
    Weight: ≤0.8 kg
    Desktop installation
