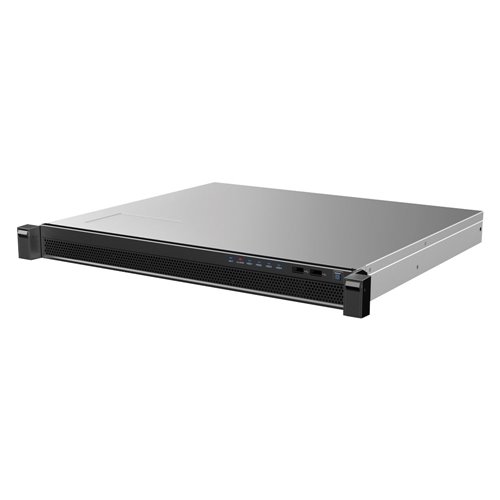

DSS4004-S2 - Centro de gestión de vigilancia gen…

Features

• DSS4004-S2
• Preloaded with DSS Express optimized for Linux and easy to use, which simplifies its implementation
• 512 pre-activated video channels
• Active standby mode of two servers for stable operation 7x24h
• The long-term stability test makes hardware, operating system and software more compatible

General functions

• DSS4004-S2
• Add devices by automatic search, and by IP
• Management of DAHUA devices such as IP cameras, PTZ IP domes, thermal cameras, NVR, DVR, access control, etc.
• Add, edit and delete users
• Allows you to assign different users with different permissions
• Local disk storage and extended storage through ISCSI
• Allows you to add, edit, delete, enable and disable the recording plan
• Supports edge storage and central storage
• Link the access control channels with the corresponding cameras
• Video filters: normal, motion, alarm, video loss, video manipulation
• Synchronized playback
• Reverse playback
• Frame by frame playback
• Supports 1X, 2X, 4X, 8X, 16X, 32X, 64X, 1 / 2X, 1 / 4X, 1 / 8X, 1 / 16X, 1 / 32X, 1 / 64X playback
• Allows blocking or marking of important recordings for central storage
• Supports smart search
• Supports TPV data record search (POS)
• Raster map, main map and submaps
• Up to 8 submap levels
• Allows you to add, edit and delete hot spots on the maps (camera, alarm input)
• Allows live viewing and playback on the map
• Videowall management
• Supports combining multiple screens into one

Specs

• DSS4004-S2
• 64-bit 4-core processor
• Linux operating system
• Supports hot swap replacement
• 8GB memory
• Up to 100 PC clients
• Up to 100 DSS Mobile 2 customers
• Up to 5000 DSS Mobile VDP clients
• 10 hierarchies of up to 999 organizations per hierarchy
• 3 levels of user groups
• Up to 100 online users and unlimited users
• Up to 512 video channels
• 64 channels Onvif
• Access control up to 100 IP, 512 doors
• Up to 1100 video intercom devices (maximum 100 VTO units)
• Up to 32 facial recognition channels
• Up to 32 ANPR cameras
• Up to 64 alarm host
• Up to 32 POS (POS) channels
• Up to 64 assistance hours
• Video input 350 Mbps per server
• Video output 350 Mbps per server
• 150 Mbps server playback bandwidth
• 150 Mbps video storage bandwidth per server
• Maximum storage capacity per server of 200TB
• Personnel management of up to 30,000 users, 30,000 cards and 90,000 fingerprints
• 4 Gigabit Ethernet ports (10/100 / 1000Mbps)
• RS232 port
• 4 USB3.0 ports (2 on the front panel and 2 on the rear panel)
• 2 HDMI ports
• 1 VGA port
• It incorporates 1 HDD (2.5 ") of 1TB for the system
• Supports up to 3 HDD (2.5 ") for storage (not included)
• Power supply 100V ~ 200V, 47 ~ 63 Hz
• Consumption: 70W ~ 120W
• Operating temperature of 0 ° C ~ + 45 ° C
• Storage temperature of -20 ° C ~ + 70 ° C
• Relative humidity of 5% ~ 90% (without condensation)
• 1mm steel chassis
• Rack: 1U, standard 19 "rack installation
• Dimensions: 440 (W) x 43.6 x 398.6 mm
• Weight: 6 kg
