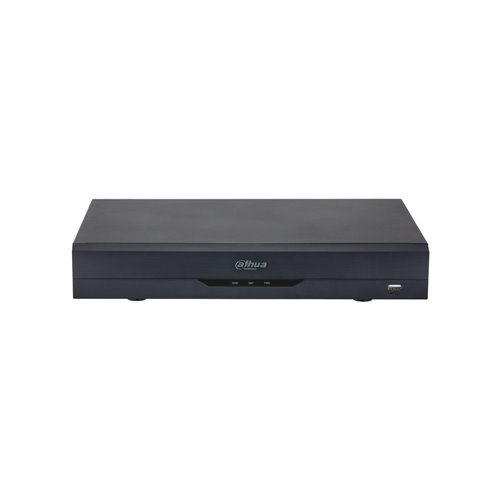

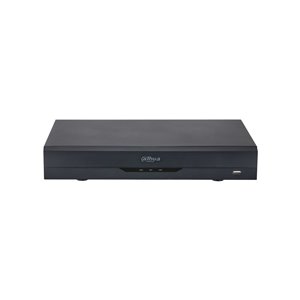

DH-XVR5104HE-I2 - XVR 5-in-1 Dahua WizSense 4-channel…

SKU: DH-XVR5104HE-I2

incl. VAT€172,86

Price incl. VAT: €172,86

Ex. VAT: €138,29

Total discount:

VAT: €34,57

XVR 5-in-1 Dahua WizSense 4-channel HDCVI/HDTVI/AHD/CVBS + 2-IP channel 6MP (in addition to BNC inputs). BNC inputs can be converted to IP. Format AI/H.265+/H.265/H.264+/H.264. Bi-directional audio. 4 audio inputs / 1 audio output. 4-channel playback. 32 Mbps. Recording 5M-N (10 fps), 4M-N, 1080P (15 fps), 1080N, 720P, 960H, D1, CIF (25 fps). HDMI output (1080P) and VGA output (1080P). 2-channel perimeter protection. 1-channel facial recognition. 4-channel SMD Plus. 8 alarm inputs / 3 alarm outputs. Supports 1 SATA HDD up to 6TB. RJ45 Fast Ethernet. Onvif, CGI, P2P, DDNS. 2 USB, 1 RS485. 12V DC. Desktop.

+20 left on stock

Back to: Dahua New

Product description: DH-XVR5104HE-I2

Description

HDCVI

Specifications

DH-XVR5104HE-I2
5 technologies: IP, HDCVI, HDTVI, AHD, and analogue CVBS cameras with automatic signal recognition
4 BNC channels up to 5M-N (BNC inputs can be converted to IP)
2 IP channels up to 6MP (added to BNC inputs)
Video compression: AI, H.265+, H.265, H.264+, H.264
HDMI video output (1080P) and VGA output (1080P)
Output split: 1, 4 (IP mode off); 1, 4, 6 (IP mode on)
4 RCA audio inputs / 1 RCA audio output
Bi-directional audio via RCA input / RCA output
Audio compression: G.711a, G.711u, PCM
Recording Resolution: 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF
Maximum incoming bandwidth 32 Mbps
Primary stream: 5M-N (1~10 fps), 4M-N/1080P (1~15 fps), 1080N/720P/960H/D1/CIF (1~25 fps)
Secondary stream: D1/CIF (1~15 ips)
Recording modes: manual, calendar, video detection, video loss, tampering, alarm, stop
Recording intervals (1~60 minutes), pre-recording (1~30 sec.) and post-recording (10~300 sec.)
Independent configurable video sensor per camera (selectable 22x18 grid), video loss detection and masking, diagnostics
8 alarm inputs / 3 alarm outputs
Playback of up to 4 channels
Perimeter protection: 2 channels, 10 SVIs per channel
Facial recognition: 1 channel, 8 facial images per second, 10 facial databases of up to 10,000 images
SMD Plus: 4 channels, person/vehicle classification
Internal capacity for 1 SATA HDD up to 6TB (sold separately)
Multi-language on-screen menu with the new improved graphical interface
Possibility to update DAHUA camera firmware from the recorder itself
Software and hardware watchdog
Watermarking to preserve video integrity
RJ45 Fast Ethernet network port (100MB)
Network protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filtering, PPPoE, DDNS, FTP,
Alarm Server, P2P, IP Search (supports DAHUA IP cameras, DVR, NVS, etc.)
ONVIF 16.12 and CGI compatible
Remote access from a web browser and iPhone, iPad, Android devices (EVO and Peepall App)
Sending of eMails with attached photo in alarm
Sending to FTP programmed or on alarm
Possibility to send an alarm and be connected to an alarm receiving software (C.R.A.) via free software AlarmSpace
Possibility of fixed or dynamic IP via DDNS Evolution service
Communication ports: 2 USB 2.0 ports, 1 RS485 port (for PTZ control)
Power supply: 12V DC, 1.5A (<4W, excluding disks)
Storage temperature from -20°C ~ +70°C
Operating temperature from -10°C ~ +55°C
Relative humidity 0%~90%.
Dimensions: 325 (W) x 55 (H) x 257 mm
Weight: 1.1 kg
Desktop installation
