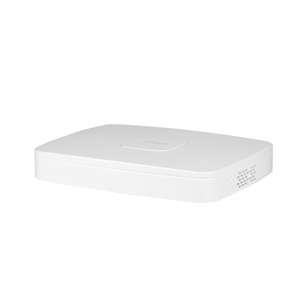

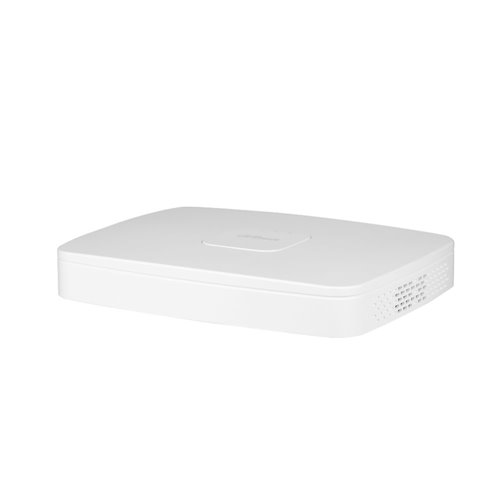

DH-XVR5104C-I3 - Dahua 5-in-1 XVR with 4 HDCVI/HDTVI…

Specifications

5 technologies: IP, HDCVI, HDTVI, AHD, and analogue CVBS cameras with automatic signal recognition
4 BNC channels up to 5MP (BNC inputs can be converted to IP)
2 IP channels up to 6MP (added to BNC inputs)
Video compression: AI, H.265+, H.265, H.264+, H.264
HDMI (1080P) and VGA video outputs (up to 1080P)
Output division: 1, 4 (IP mode off); 1, 4, 6 (IP mode on)
1 RCA input / 1 RCA audio output
Bi-directional audio via RCA audio channel
Audio compression: G.711a, G.711u, PCM
Recording resolution: 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF
Maximum incoming bandwidth 32 Mbps
Primary stream: 5M-N (1~10 fps), 4M-N/1080P (1~15 fps), 1080N/720P/960H/D1/CIF (1~25 fps)
Secondary stream: D1/CIF (1~15 ips)
Recording modes: manual, calendar, video detection, video loss, tampering, alarm, stop
Recording intervals (1~60 minutes), pre-recording (1~30 sec.) and post-recording (10~300 sec.)
Independent configurable video sensor per camera (selectable 22x18 grid), video loss detection and masking, diagnostics
Playback of up to 4 channels
Perimeter protection: 1 channel, up to 10 IVS rules, person/vehicle classification
Face detection: 1 channel, only analogue cameras supported
SMD Plus: 4 channels, person/vehicle classification
Internal capacity for 1 SATA HDD up to 6TB (sold separately)
Multi-language on-screen menu with new improved graphical interface
Possibility to update DAHUA camera firmware from the recorder itself
Software and hardware watchdog
Watermarking to preserve video integrity
RJ45 Fast Ethernet network port (100M)
Network protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filtering, PPPoE, DDNS, FTP, Alarm Server, P2P, IP Search, (supports DAHUA IP cameras, DVR, NVS, etc.)
ONVIF 16.12 and CGI compatible
Remote access from a web browser and iPhone, iPad, Android devices (App EVO and Peepal)
Sending of eMails with attached photo in alarm
Sending to FTP programmed or on alarm
Possibility to send an alarm and be connected to an alarm receiving software (C.R.A.) via free software AlarmSpace
Possibility of fixed or dynamic IP via DDNS Evolution service
Communication Ports: 2 USB 2.0 ports
Power supply: 12V DC, 1.5A (<4W, excluding disks)
Storage temperature from -20°C ~ +70°C
Operating temperature from -10°C ~ +45°C
Relative humidity 0%~90%.
Dimensions: 204.6 (W) 45.6 (H) x 210.9 mm
Weight: 490 g
Desktop installation
