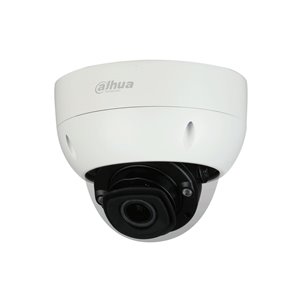

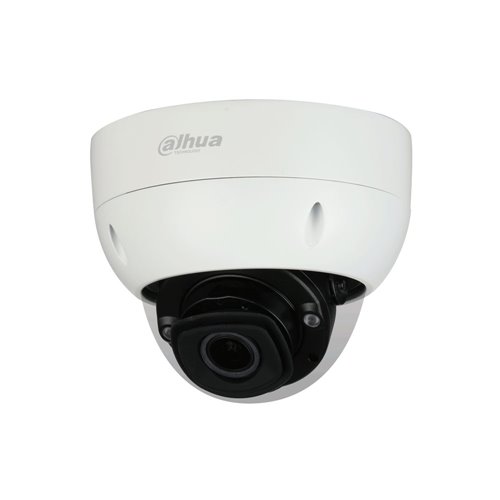

DH-IPC-HDBW5442HP-ZE - Dahua AI Series IP minidome camera…

Characteristics

1 / 1.8 ”4 megapixel CMOS sensor
H.265 and H.264 encoding with triple stream
Resolution 4MP 2688 (H) × 1520 (V) at 25 ips
WDR 140dB, day / night with ICR filter, 3D-DNR, AWB, AGC, BLC
Multiple remote monitoring via web browser, CMS (DSS / PSS) and DMSS
2.7mm – 12mm motorized lens
Infrared illumination up to 40 meters
3 inputs / 2 alarm outputs
1 audio input / 1 output
MicroSD slot
Degree of protection IP67
Anti-vandalism IK10
Supports ePoE

specs

1 / 1.8 ”4 megapixel CMOS sensor
Compression formats: H.265 / H.264 / MJPEG
Digital Resolution: 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), D1 (704x576), VGA (640x480), CIF (352x288)
Stream 1: 4MP (1 ~ 25/30 ips)
Stream 2: D1 (1 ~ 50/60 ips)
Stream 3: 1080P (1 ~ 25/30 ips)
Day / night mode with removable mechanical filter
Smart IR: 4 LEDs, 40 meters
0.003 lux F1.8
2.7mm – 12mm motorized lens
PTZ function: Pan: 0 ° –355 °, Tilt: 0 ° –80 °, Rotation: 0 ° –355 °
White Balance: Auto, Natural, Street Light, Outdoor, Manual
Automatic and manual gain control
Backlight compensation: BLC, HLC
WDR 140dB
3D-DNR digital noise reduction
4 ROI zones
4 rectangular zones video sensor
4 Rectangular Zone Privacy Mask
EIS Image Stabilizer
Defog
Mirror mode
Artificial intelligence:
Face Capture: Supports captures of face images
Face attributes: Supports 6 kinds of facial attributes extraction, such as age, gender, expressions (joy, surprise, neutral face, anger, etc.), glasses, mouth mask,
beard...
Perimeter protection: Line crossing, Intrusion (classification of people / vehicles)
Intelligent Detection (IVS): Scene changes, abandoned / lost objects, heat map
1 audio input / 1 output
3 inputs / 2 alarm outputs
MicroSD card slot up to 256GB (not included)
Network interface: RJ45 (10/100 Base-T)
Network protocols: IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, 802.1x, SNMP
Compatible with ONVIF (Profile S / G / T), CGI, Milestone, P2P
Unicast / Multicast streaming method
Up to 20 users
Remote viewing through IE8 +, Chrome, Firefox and Safari + browsers 12
Smart PSS, DSS, DMSS management software
Compatible with IOS and Android mobile devices
Power supply: 12V DC
Consumption: <11.9W
Supports PoE (802.3 af, Class 0)
Supports ePoE: full duplex transmission of more than 800 meters at 10 Mbps or 300 meters at 100 Mbps over Cat5 or coaxial cable
Degree of protection IP67
IK10 vandal protection
Storage temperature -40 ° C ~ + 60 ° C
-30 ° C ~ + 60 ° C operating temperature
Relative humidity: 10% ~ 95%
Metal housing
Dimensions: 129.1 × Φ 157.9 mm
Weight: 1.5 kg
