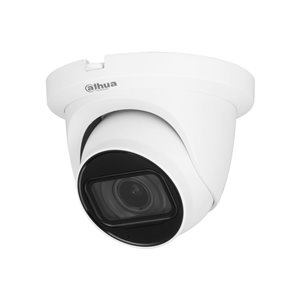

DH-HAC-HDW1500TLMQP-A-POC-0280B-S2 - PRO series 4-in-1 fixed dome with 3…
Specifications
5-megapixel 1/2.7" CMOS sensor
Digital resolution: 5MP (2880x1620), 4MP (2560x1440), 1080P (1920x1080), 960H (960x576)
Frames per second: 25 fps @5MP (CVI), 25 fps @4MP (CVI/TVI/AHD), 25 fps @1080P (CVI)
4 in 1 output switchable via OSD menu
Day/Night mode with removable mechanical filter (ICR)
0.005 lux F1.6 (colour) / 0 Lux IR On
Smart IR: 1 led, up to 30 metres
2.8 mm fixed optics
Viewing angle: 111°(H), 58°(V), 132°(D)
OSD via coax (5MP video up to 700 metres).
Picture modes: BLC, HLC, digital WDR, 2D-NR, Mirror
Auto and manual white balance
Automatic and manual gain control
8-zone privacy mask
Built-in microphone
PoC power (CVI only): can be powered through a single coaxial cable via XVR with PoC function, thus no external power supply required, reducing installation time and cost
Power supply: 12V DC (±30%)
Power consumption: 3.2W (max.)
Storage temperature from -40°C ~ +60°C
Operating temperature range -40°C ~ +60°C
Relative humidity: <95% (non-condensing)
Degree of protection IP67
Metal housing
Dimensions: Ø109.9 x 88.1 (H) mm
Weight: 330 g
3AXIS: 0°~360°(PAN), 0°~78°(TILT), 0°~360°(Rotation)
